Description

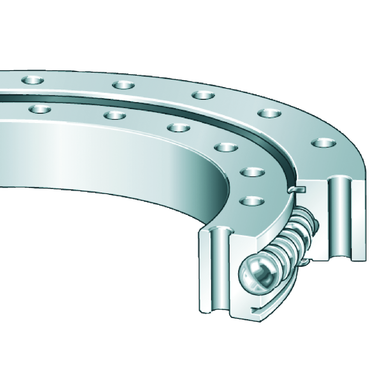

Four point contact bearings without gear teeth, sealed on both sides
INA
VU140179-ZT
Slewing ring, 4 point contact bearing, without gear teeth
od EUR 2,509.95z VAT
netto EUR 2,040.61 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
VU140179-ZT—
EUR 2,509.95
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)VU140179-ZT#N1
EAN4054365410970
Masa6.20 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
45 parametersIdentification
- Manufacturer
- INA
- Type
- Slewing ring, 4 point contact bearing, without gear teeth
- Part number (SKU)
- VU140179-ZT#N1
- EAN
- 4054365410970

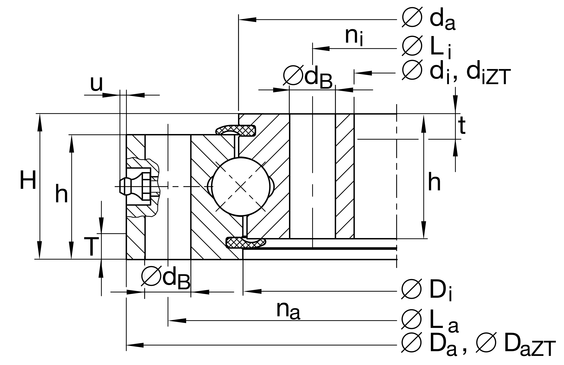

Dimensions
- Mass
- 6.20 kg
Load ratings and operation
- Dynamic load rating C
- 96000 N
- Static load rating C₀
- 395000 N
Full manufacturer specification38 parameters · expand
- Basic dynamic load rating, axial
- 96000.0 N
- Basic dynamic load rating, radial (for radial load only)
- 87000.0 N
- Basic static load rating, axial
- 395000.0 N
- Basic static load rating, radial (for radial load only)
- 182000.0 N
- Centering
- ZT
- Centring diameter outer ring
- 232.0 mm
- Diameter centring inner ring
- 126.5 mm
- Diameter centring inner ring tolerance
- IT8
- Diameter centring outer ring tolerance
- -IT8
- Fixing bore
- 11.0 mm
- Height
- 35.0 mm
- Inner diameter inner ring
- 124.5 mm
- Inner diameter inner ring lower tolerance
- 0.5 mm
- Inner diameter inner ring upper tolerance
- 0.5 mm
- Inner diameter outer ring
- 178.0 mm
- Length centering inner ring
- 5.0 mm
- Length centering outer ring
- 5.0 mm
- Max. protrusion lubrication nipple
- 3.0 mm
- Max. radial load fixing screws (friction locking)
- 33600.0 N
- Normal axial clearance max.
- 0.23 mm
- Normal axial clearance min.
- 0.07 mm
- Normal radial clearance max.
- 0.14 mm
- Normal radial clearance min.
- 0.04 mm
- Number of fixing holes in inner ring
- 12.0
- Number of fixing holes in outer ring
- 12.0
- Operating temperature max.
- 80.0 °C
- Operating temperature min.
- -25.0 °C
- Outside Diameter
- 234.0 mm
- Outside diameter inner ring
- 180.0 mm
- Outside diameter lower tolerance
- 0.5 mm
- Outside diameter upper tolerance
- 0.5 mm
- PFAS
- nein
- Pitchcircle diameter fixing holes inner ring
- 144.5 mm
- Pitchcircle diameter fixing holes outer ring
- 214.0 mm
- REACH
- REACH compliant with declarable lead proportion
- RoHS
- RoHS compliant with declarable substances
- Width inner ring
- 30.0 mm
- Width outer ring
- 30.0 mm
