Description
Slewing Ring, Four Point contact bearing, without gear teeth
INA
VSU200544-VSP-ZT
Slewing ring, 4 point contact bearing, without gear teeth
od EUR 5,582.97z VAT
netto EUR 4,539.00 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
VSU200544-VSP-ZT—
EUR 5,582.97
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)VSU200544-VSP-ZT#N
EAN4054366143938
Masa37.45 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
45 parametersIdentification
- Manufacturer
- INA
- Type
- Slewing ring, 4 point contact bearing, without gear teeth
- Part number (SKU)
- VSU200544-VSP-ZT#N
- EAN
- 4054366143938
Dimensions
- Mass
- 37.45 kg
Load ratings and operation
- Dynamic load rating C
- 152000 N
- Static load rating C₀
- 870000 N
Full manufacturer specification38 parameters · expand
- Basic dynamic load rating, axial
- 152000.0 N
- Basic dynamic load rating, radial (for radial load only)
- 138000.0 N
- Basic static load rating, axial
- 870000.0 N
- Basic static load rating, radial (for radial load only)
- 400000.0 N

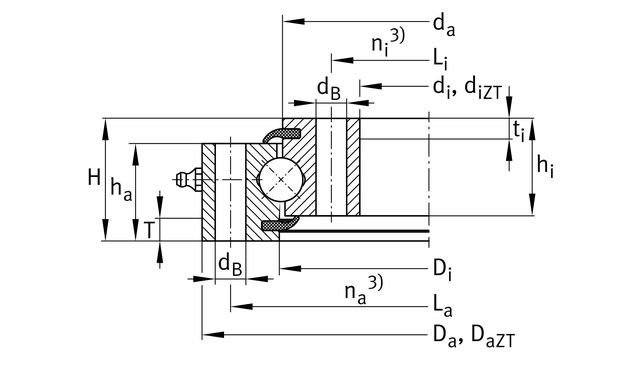

- Centering
- ZT
- Centring diameter outer ring
- 614.0 mm
- Diameter centring inner ring
- 474.0 mm
- Diameter centring inner ring tolerance
- IT8
- Diameter centring outer ring tolerance
- -IT8
- Fixing bore
- 14.0 mm
- Height
- 56.0 mm
- Inner diameter inner ring
- 472.0 mm
- Inner diameter inner ring lower tolerance
- 0.0 mm
- Inner diameter inner ring upper tolerance
- 0.5 mm
- Inner diameter outer ring
- 545.5 mm
- Inner diameter outer ring lower tolerance
- 0.0 mm
- Inner diameter outer ring upper tolerance
- 0.5 mm
- Length centering inner ring
- 10.0 mm
- Length centering outer ring
- 10.0 mm
- Max. radial load fixing screws (friction locking)
- 132200.0 N
- Number of fixing holes in inner ring
- 32.0
- Number of fixing holes in outer ring
- 32.0
- Operating temperature max.
- 80.0 °C
- Operating temperature min.
- -25.0 °C
- Outside Diameter
- 616.0 mm
- Outside diameter inner ring
- 542.5 mm
- Outside diameter inner ring lower tolerance
- -0.5 mm
- Outside diameter inner ring upper tolerance
- 0.0 mm
- Outside diameter lower tolerance
- -0.5 mm
- Outside diameter upper tolerance
- 0.0 mm
- PFAS
- nein
- Pitchcircle diameter fixing holes inner ring
- 498.0 mm
- Pitchcircle diameter fixing holes outer ring
- 590.0 mm
- Preload
- VSP
- REACH
- REACH compliant with declarable lead proportion
- RoHS
- RoHS compliant with declarable substances
- Width inner ring
- 44.5 mm
- Width outer ring
- 44.5 mm
