Description

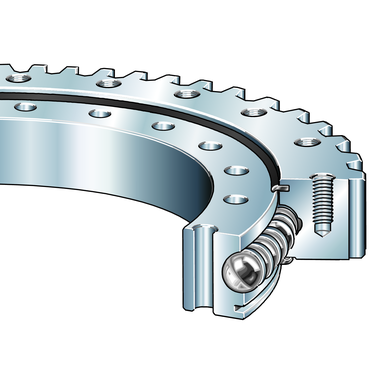

Slewing ring, 4 point contact bearing, external gear teeth
INA
VSA200414-N-ZT
Slewing ring, 4 point contact bearing, external gear teeth
od EUR 4,398.12z VAT
netto EUR 3,575.71 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
VSA200414-N-ZT—
EUR 4,398.12
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)VSA200414-N-ZT#N1
EAN4054364291938
Masa31.40 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
54 parametersIdentification
- Manufacturer
- INA
- Type
- Slewing ring, 4 point contact bearing, external gear teeth
- Part number (SKU)
- VSA200414-N-ZT#N1
- EAN
- 4054364291938
Dimensions
- Mass
- 31.40 kg
- Radial clearance
- Standard_SL
Load ratings and operation
- Dynamic load rating C
- 124000 N
- Static load rating C₀
- 305000 N

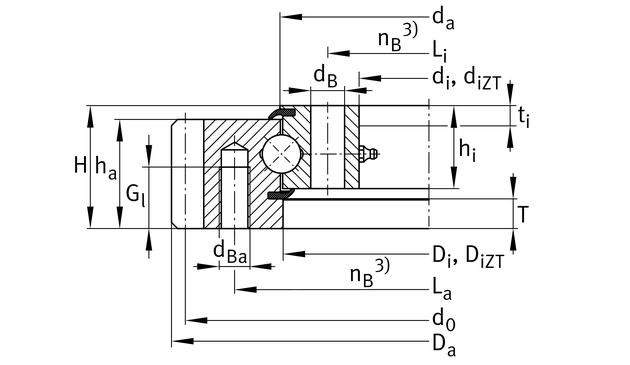

Full manufacturer specification46 parameters · expand
- Basic dynamic load rating, axial
- 137000.0 N
- Basic static load rating, axial
- 660000.0 N
- Bore Diameter
- 342.0 mm
- Bore diameter lower tolerance
- 0.0 mm
- Bore diameter upper tolerance
- 0.5 mm
- Centering
- ZT
- Diameter centring inner ring
- 344.0 mm
- Diameter centring inner ring tolerance
- IT8
- Diameter centring outer ring
- 417.0 mm
- Diameter centring outer ring tolerance
- IT8
- Fixing bore
- 14.0 mm
- Gearing
- N
- Height
- 56.0 mm
- Height of inner ring
- 44.5 mm
- Inner diameter outer ring
- 415.5 mm
- Inner diameter outer ring lower tolerance
- 0.0 mm
- Inner diameter outer ring upper tolerance
- 0.5 mm
- Length centering inner ring
- 10.0 mm
- Length centering outer ring
- 4.5 mm
- Max. radial load fixing screws (friction locking)
- 76000.0 N
- Max. tooth force against tooth fracture (at a shock factor of 1,35)
- 23600.0 N
- Max. tooth force root fatigue strenght (at a shock factor of 1,2)
- 15900.0 N
- Modul of gearing
- 5.0 mm
- Number of fixing holes in inner ring
- 24.0
- Number of fixing holes in outer ring
- 20.0
- Number of teeth
- 99.0
- Offset diameter outer ring
- 480.0 mm
- Offset diameter outer ring lower tolerance
- -0.5 mm
- Offset diameter outer ring upper tolerance
- 0.0 mm
- Operating temperature max.
- 80.0 °C
- Operating temperature min.
- -25.0 °C
- Outside Diameter
- 503.3 mm
- Outside diameter inner ring
- 412.5 mm
- Outside diameter inner ring lower tolerance
- -0.5 mm
- Outside diameter inner ring upper tolerance
- 0.0 mm
- PFAS
- nein
- Pitch circle diameter gearing
- 495.0 mm
- Pitchcircle diameter fixing holes inner ring
- 368.0 mm
- Pitchcircle diameter fixing holes outer ring
- 455.0 mm
- Profile shift
- -0.18 mm
- Radial internal clearance
- Standard_SL
- REACH
- REACH compliant with declarable lead proportion
- Thread depth fixing hole
- 20.0 mm
- Tread fixing bore
- M12
- Width gearing
- 40.0 mm
- Width outer ring
- 44.5 mm
