Description

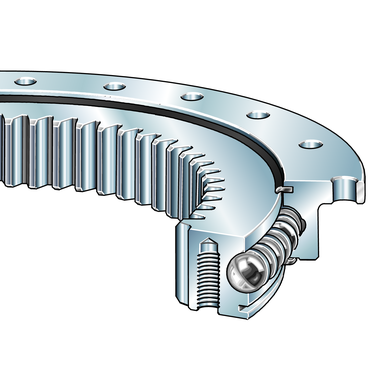

Four point contact bearings, light series 20, internal gear teeth, lip seals on both sides
INA
VLI200414-N-VSP
Slewing ring, 4 point contact bearing, internal gear teeth
od EUR 5,170.99z VAT
netto EUR 4,204.06 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
VLI200414-N-VSP—
EUR 5,170.99
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)VLI200414-N-VSP#N
EAN4047643185431
Masa27.90 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
46 parametersIdentification
- Manufacturer
- INA
- Type
- Slewing ring, 4 point contact bearing, internal gear teeth
- Part number (SKU)
- VLI200414-N-VSP#N
- EAN
- 4047643185431
Dimensions
- Mass
- 27.90 kg
Load ratings and operation
- Dynamic load rating C
- 124000 N
- Static load rating C₀
- 110000 N

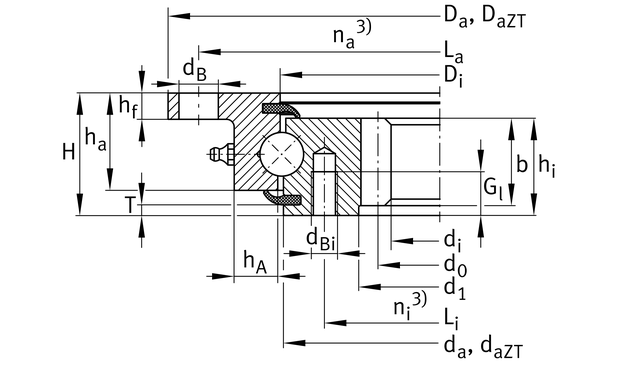

Full manufacturer specification39 parameters · expand
- Basic dynamic load rating, axial
- 137000.0 N
- Basic static load rating, axial
- 295000.0 N
- Bore Diameter
- 325.0 mm
- Diameter turning inner ring
- 350.0 mm
- Diameter turning inner ring lower tolerance
- 0.0 mm
- Diameter turning inner ring upper tolerance
- 0.5 mm
- Fixing bore
- 18.0 mm
- Gearing
- N
- Height
- 56.0 mm
- Height of flange
- 12.0 mm
- Inner diameter outer ring
- 415.5 mm
- Inner diameter outer ring lower tolerance
- 0.0 mm
- Inner diameter outer ring upper tolerance
- 0.5 mm
- Max. radial load fixing screws (friction locking)
- 49600.0 N
- Max. tooth force against tooth fracture (at a shock factor of 1,35)
- 26200.0 N
- Max. tooth force root fatigue strenght (at a shock factor of 1,2)
- 17700.0 N
- Modul of gearing
- 5.0 mm
- Number of fixing holes in inner ring
- 12.0
- Number of fixing holes in outer ring
- 8.0
- Number of teeth
- 67.0
- Operating temperature max.
- 80.0 °C
- Operating temperature min.
- -25.0 °C
- Outside Diameter
- 518.0 mm
- Outside diameter inner ring
- 412.5 mm
- Outside diameter inner ring lower tolerance
- -0.5 mm
- Outside diameter inner ring upper tolerance
- 0.0 mm
- Outside diameter lower tolerance
- -0.5 mm
- Outside diameter upper tolerance
- 0.0 mm
- PFAS
- nein
- Pitch circle diameter gearing
- 335.0 mm
- Pitchcircle diameter fixing holes inner ring
- 375.0 mm
- Pitchcircle diameter fixing holes outer ring
- 490.0 mm
- Preload
- VSP
- Ring cross section
- 20.0 mm
- Thread depth fixing hole
- 20.0 mm
- Tread fixing bore
- M12
- Width gearing
- 40.0 mm
- Width inner ring
- 44.5 mm
- Width outer ring
- 44.5 mm
