Technical data
42 parametersIdentification
- Manufacturer
- INA
- Type
- Slewing ring, 4 point contact bearing, external gear teeth
- Part number (SKU)
- VA160235-N#N
- EAN
- 4012802419658
Dimensions
- Mass
- 12.90 kg
Load ratings and operation
- Dynamic load rating C
- 112000 N
- Static load rating C₀
- 210000 N

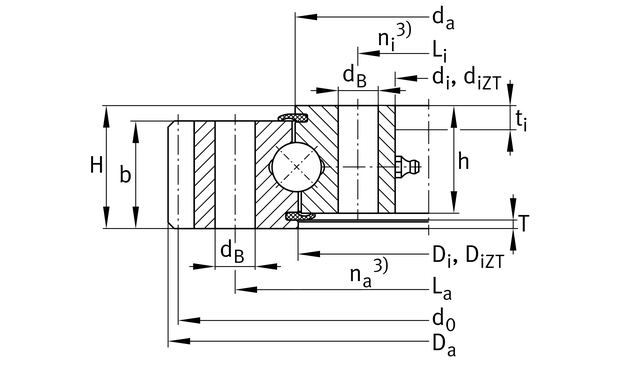

Full manufacturer specification35 parameters · expand
- Basic dynamic load rating, axial
- 123000.0 N
- Basic static load rating, axial
- 460000.0 N
- Bore Diameter
- 171.0 mm
- Diameter centring outer ring
- 236.0 mm
- Diameter centring outer ring tolerance
- IT8
- Fixing bore
- 13.0 mm
- Gearing
- N
- Height
- 40.0 mm
- Height of inner ring
- 35.0 mm
- Inner diameter outer ring
- 234.0 mm
- Length centering inner ring
- 6.0 mm
- Length centering outer ring
- 2.3 mm
- Max. operating temperature
- 80.0 °C
- Max. radial load fixing screws (friction locking)
- 49600.0 N
- Max. tooth force against tooth fracture (at a shock factor of 1,35)
- 16100.0 N
- Max. tooth force root fatigue strenght (at a shock factor of 1,2)
- 11000.0 N
- Min. operating temperature
- -25.0 °C
- Modul of gearing
- 4.0 mm
- Normal axial clearance max.
- 0.26 mm
- Normal axial clearance min.
- 0.07 mm
- Normal radial clearance max.
- 0.16 mm
- Normal radial clearance min.
- 0.04 mm
- Number of fixing holes in inner ring
- 12.0
- Number of fixing holes in outer ring
- 12.0
- Number of teeth
- 78.0
- Outer ring width
- 35.0 mm
- Outside diameter
- 318.6 mm
- Outside diameter inner ring
- 236.0 mm
- PFAS
- no
- Pitch circle diameter gearing
- 312.0 mm
- Pitchcircle diameter fixing holes inner ring
- 195.0 mm
- Pitchcircle diameter fixing holes outer ring
- 275.0 mm
- REACH
- REACH compliant with declarable lead proportion
- RoHS
- RoHS compliant with declarable substances
- Width gearing
- 35.0 mm
Classification
- Manufacturer category
- Rolling and Plain Bearings › Combined Axial-, Radial-Bearings › Slewing Rings
- eCl@ss class
- 23-05-14-90
- UNSPSC
- 31171504
Description

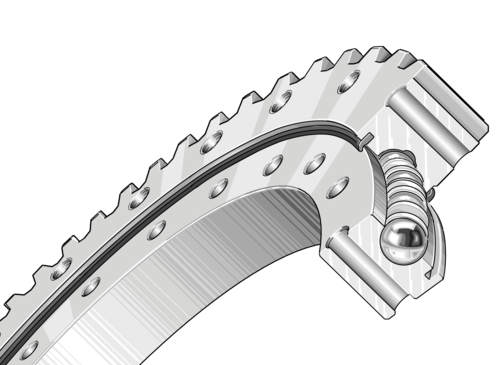

Slewing ring, 4 point contact bearing, external gear teeth
INA
VA160235-N
Slewing ring, 4 point contact bearing, external gear teeth
od EUR 4,647.95net
+ VAT 23% = EUR 5,716.98 gross
To orderdate to be confirmed
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
VA160235-N—
EUR 4,647.95
Cheaper in larger quantities
| from 5 pcs | EUR 4,462.03 | −4% |
| from 10 pcs | EUR 4,415.56 | −5% |
| from 25 pcs | EUR 4,322.60 | −7% |
| from 50 pcs | EUR 4,229.64 | −9% |
Brought in to order — we confirm the date after checking with the manufacturer.
Shipping within the EU: DHL, GLS, from EUR 13.16 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Symbol (SKU)VA160235-N#N
EAN4012802419658
Masa12.90 kg
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)RoHS / REACH compliance declaration (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
