Description

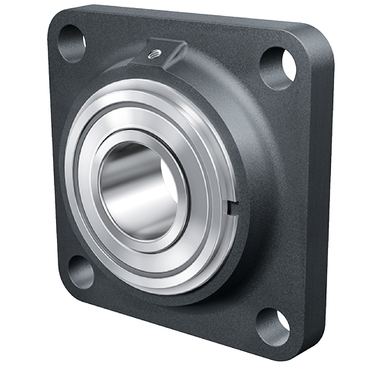

Flanged housing unit UCF
FAG
UCF208-J7
Flanged housing unit
⌀40 × 80 × 49.2 mm
od EUR 20.38z VAT
netto EUR 16.57 · cena detaliczna
EUR 22.52−10%
UCF208-J7—
EUR 22.52
EUR 20.38Cheaper in larger quantities
| from 10 pcs | EUR 17.95 | −2% |
| from 50 pcs | EUR 17.58 | −4% |
| from 250 pcs | EUR 17.40 | −5% |
In stock (148 pcs)dispatch within 24 h
Dispatched within 24 h from our own warehouse
Symbol (SKU)UCF208-J7#N1
EAN4047643247634
Wymiary⌀40 × 80 × 49.2 mm
Masa1.93 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
51 parametersIdentification
- Manufacturer
- FAG
- Type
- Flanged housing unit
- Part number (SKU)
- UCF208-J7#N1
- EAN
- 4047643247634
Dimensions
- Bore d
- 40 mm
- Outside diameter D
- 80 mm
- Width B
- 49.2 mm
- Mass
- 1.93 kg
Load ratings and operation
- Dynamic load rating C
- 34500 N
- Static load rating C₀
- 19800 N
Full manufacturer specification41 parameters · expand
- Basic dynamic load rating
- 34500.0 N
- Basic static load rating
- 19800.0 N
- Bearing designation
- UC208
- Bearing in kit
- UC208
- Bearing sealed
- Yes
- Bearing sort
- RIBB
- Bearing split
- No
- Connection thread for lubrication
- M6
- Distance between mounting bolt centerlines (length)
- 144.2498 mm
- Distance fixing bore
- 102.0 mm
- Distance raceway
- 21.0 mm
- Fatigue load limit, radial
- 840.0 N
- Fixing bore
- 16.0 mm
- Flange width
- 130.0 mm
- Height bearing seat
- 65.0 mm
- Height housing
- 36.0 mm
- Housing
- F208
- Housing height
- 130.0 mm
- Housing in kit
- UCF208-J7
- Housing length
- 130.0 mm
- Housing material
- GG
- Housing opening
- durchgehend
- Housing qty bolts
- 4
- Housing shape
- Viereck
- Housing sort
- Flanged
- Housing split
- Nein
- Housing width
- 51.2 mm
- Inner diameter bearing
- 40.0 mm
- Location on shaft
- Acc
- Material
- GG
- Number of housings
- 1.0
- Number of screwing holes
- 4.0
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -20.0 °C
- Outer diameter bearing
- 80.0 mm
- PFAS
- nein
- REACH
- REACH compliant with declarable lead proportion
- RoHS
- RoHS compliant with declarable substances
- Sealing type
- LIP
- Thickness of flange
- 16.0 mm
- Total height unit
- 51.2 mm
