Description
Housing units RATY, two-bolt flanged housing units, sheet steel, grub screws in inner ring, P seals
INA
RATY40-XL
Flanged housing unit
⌀40 × 80 × 39.5 mm
od EUR 29.61z VAT
netto EUR 24.07 · cena detaliczna
EUR 39.48−25%
RATY40-XL—
EUR 39.48
EUR 29.61Cheaper in larger quantities
| from 10 pcs | EUR 31.45 | −2% |
| from 50 pcs | EUR 30.81 | −4% |
| from 250 pcs | EUR 30.49 | −5% |
Last few (4)dispatch within 24 h
Dispatched within 24 h from our own warehouse
Symbol (SKU)RATY40-XL#N1
EAN4012802808766
Wymiary⌀40 × 80 × 39.5 mm
Masa910 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
52 parametersIdentification
- Manufacturer
- INA
- Type
- Flanged housing unit
- Part number (SKU)
- RATY40-XL#N1
- EAN
- 4012802808766

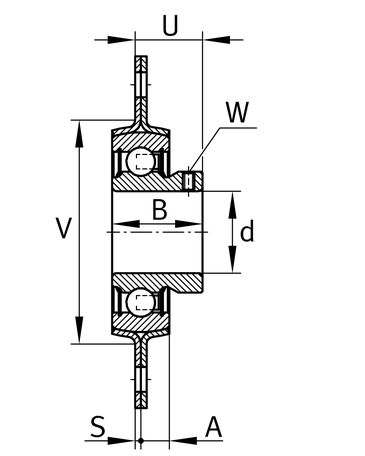

Dimensions
- Bore d
- 40 mm
- Outside diameter D
- 80 mm
- Width B
- 39.5 mm
- Mass
- 910 g
Load ratings and operation
- Dynamic load rating C
- 32500 N
- Static load rating C₀
- 19800 N
Full manufacturer specification42 parameters · expand
- Basic dynamic load rating
- 34500.0 N
- Basic static load rating
- 19800.0 N
- Bearing designation
- GAY40-XL-NPP-B
- Bearing in kit
- GAY40-XL-NPP-B
- Bearing sealed
- Yes
- Bearing sort
- RIBB
- Bearing split
- No
- Distance between mounting bolt centerlines (length)
- 119.0 mm
- Distance fixing bore
- 119.0 mm
- Fatigue load limit, radial
- 910.0 N
- Fixing bore
- 13.5 mm
- Fixing square
- 13.5 mm
- Flange width
- 100.0 mm
- Height bearing seat
- 75.5 mm
- Height flange
- 151.0 mm
- Height housing
- 11.5 mm
- Housing
- FLAN80-MST
- Housing height
- 151.0 mm
- Housing in kit
- RATY40-XL
- Housing length
- 100.0 mm
- Housing material
- SB
- Housing opening
- durchgehend
- Housing qty bolts
- 2
- Housing shape
- Oval
- Housing sort
- Flanged
- Housing split
- Nein
- Housing width
- 32.5 mm
- Inner diameter bearing
- 40.0 mm
- Load carrying capacity (housing)
- 7000.0 N
- Location on shaft
- Acc
- Marketing category
- XL
- Material
- Steel sheet
- Number of housings
- 2.0
- Number of screwing holes
- 2.0
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -20.0 °C
- Outer diameter bearing
- 80.0 mm
- PFAS
- nein
- Sealing type
- LIP
- Shoulder diameter housing
- 90.0 mm
- Thickness of flange
- 3.5 mm
- Total height unit
- 32.5 mm
