Technical data
24 parametersIdentification
- Manufacturer
- INA
- Type
- Profile rail
- Part number (SKU)
- TKVD35X6000-U-0001-EWL-G2#N4
- EAN
- 4054364180027

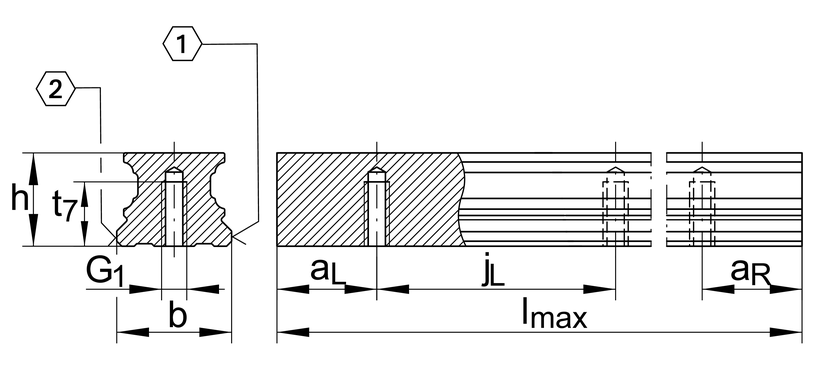

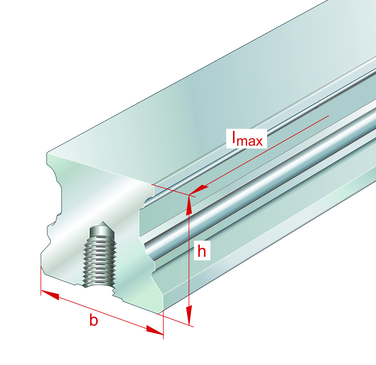

Dimensions
- Width B
- 34 mm
- Mass
- 33.80 kg
Full manufacturer specification18 parameters · expand
- ~guideway length
- 6000.0 mm
- ~Guideway length
- ~6000
- Accuracy class
- G2
- Distance
- 20.0 mm
- Height
- 27.0 mm
- Increment
- 80.0 mm
- Lower tolerance
- -0.035 mm
- Max length single piece guideway
- 6000.0 mm
- PFAS
- no
- REACH
- REACH compliant for SVHC free linear products (acc to PL responsibles)
- RoHS
- RoHS compliant
- Size code
- 35
- Thread
- M8
- Thread length
- 15.0 mm
- Tightening torque
- 41.0 Nm
- Upper tolerance
- -0.005 mm
- Usable carriage(s)
- KWVE35-B...
- Usable linear systems
- KUVE35-B...
Classification
- Manufacturer category
- Linear Motion › Monorail Guidance Systems › Four-row Linear Recirculating Ball Bearing (O-arrangement) › Guideways
- eCl@ss class
- 23-30-04-02
- UNSPSC
- 31171506
Description
Guideways for linear ball bearing unit and four-row linear recirculating ball guidance system, for screw mounting from below
For mounting this bearing
Accessories matching this item. All from our catalogue.
TKVD35X6000-U-0001-EWL-G2
Profile rail
od EUR 1,135.37net
+ VAT 23% = EUR 1,396.51 gross
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
Cheaper in larger quantities
| from 5 pcs | EUR 1,101.31 | −3% |
| from 10 pcs | EUR 1,089.95 | −4% |
| from 25 pcs | EUR 1,067.25 | −6% |
| from 50 pcs | EUR 1,044.54 | −8% |
Brought in to order — we confirm the date after checking with the manufacturer.
Shipping within the EU: DHL, GLS, from EUR 13.16 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Ten towar sprzedawany jest w opakowaniach po 4 szt.
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)RoHS / REACH compliance declaration (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
