Technical data
18 parametersIdentification
- Manufacturer
- INA
- Type
- Guideways for linear recirculating ball bearing unit
- Part number (SKU)
- TKVD32X2000-0001-EWL-G3#N2
- EAN
- 4054371812485
Dimensions
- Bore d
- 3.8 mm
- Width B
- 31.8 mm
- Mass
- 4.30 kg
Full manufacturer specification11 parameters · expand
- Distance
- 20.0 mm
- Height
- 10.0 mm
- Increment
- 40.0 mm
- Length
- 3.4 mm
- Max length single piece guideway
- 1960.0 mm
- PFAS
- no
- REACH
- REACH compliant
- RoHS
- RoHS compliant
- Size code
- 32
- Thread
- M3
- Tightening torque
- 2.5 Nm
Classification
- Manufacturer category
- Linear Motion › Monorail Guidance Systems › Linear Recirculating Ball Bearing Units › Guideways
- eCl@ss class
- 23-30-04-02
- UNSPSC
- 31171506
Description

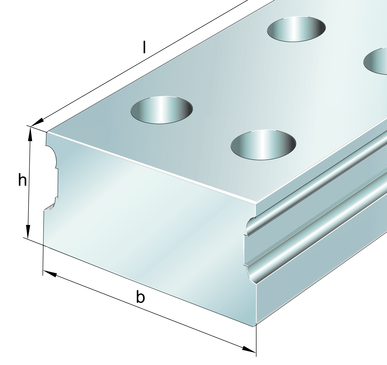

full guideway for linear recirculating ball bearing units
INA
TKVD32X2000-0001-EWL-G3
Guideways for linear recirculating ball bearing unit
od EUR 234.33net
+ VAT 23% = EUR 288.23 gross
To orderdate to be confirmed
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
TKVD32X2000-0001-EWL-G3—
EUR 234.33
Cheaper in larger quantities
| from 5 pcs | EUR 229.65 | −2% |
| from 10 pcs | EUR 227.30 | −3% |
| from 25 pcs | EUR 222.62 | −5% |
| from 50 pcs | EUR 217.93 | −7% |
Brought in to order — we confirm the date after checking with the manufacturer.
Shipping within the EU: DHL, GLS, from EUR 13.16 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Symbol (SKU)TKVD32X2000-0001-EWL-G3#N2
EAN4054371812485
Opakowanie2 szt.
Minimum order2 szt.
Masa4.30 kg
Ten towar sprzedawany jest w opakowaniach po 2 szt.
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)RoHS / REACH compliance declaration (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
