Technical data
27 parametersIdentification
- Manufacturer
- INA
- Type
- Profile rail
- Part number (SKU)
- TKVD25X6000-W-0001-EWL-G3#N2N
- EAN
- 4054371375249

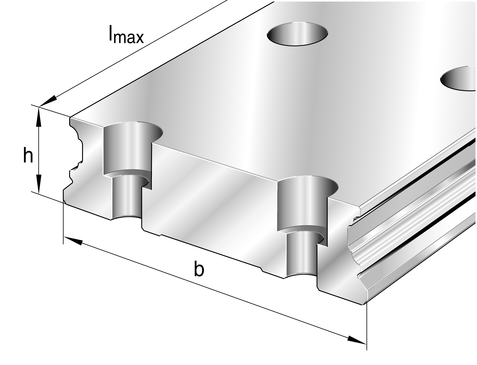

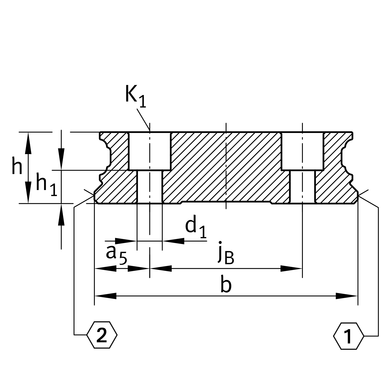

Dimensions
- Bore d
- 6.8 mm
- Width B
- 69 mm
- Mass
- 54.65 kg
Full manufacturer specification20 parameters · expand
- ~guideway length
- 6000.0 mm
- ~Guideway length
- ~6000
- Accuracy class
- G3
- Distance
- 20.0 mm
- Distance Distance
- -0.5 mm
- Guideway design
- W
- Height
- 18.7 mm
- Increment
- 80.0 mm
- Length
- 8.2 mm
- Lower tolerance
- -0.035 mm
- Max length single piece guideway
- 6000.0 mm
- PFAS
- no
- REACH
- REACH compliant for SVHC free linear products (acc to PL responsibles)
- RoHS
- RoHS compliant
- Size code
- 25
- Thread
- M6
- Tightening torque
- 17.0 Nm
- Upper tolerance
- -0.005 mm
- Usable carriage(s)
- KWVE25-W...
- Usable linear systems
- KUVE25-W...
Classification
- Manufacturer category
- Linear Motion › Monorail Guidance Systems › Four-row Linear Recirculating Ball Bearing (O-arrangement) › Guideways
- eCl@ss class
- 23-30-04-02
- UNSPSC
- 31171506
Description
Guideways for four-row linear recirculating ball bearing and guideway assembly KUVE..-W, wide guideway
INA
TKVD25X6000-W-0001-EWL-G3
Profile rail
od EUR 869.62net
+ VAT 23% = EUR 1,069.63 gross
To orderdate to be confirmed
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
TKVD25X6000-W-0001-EWL-G3—
EUR 869.62
Cheaper in larger quantities
| from 5 pcs | EUR 843.53 | −3% |
| from 10 pcs | EUR 834.84 | −4% |
| from 25 pcs | EUR 817.44 | −6% |
| from 50 pcs | EUR 800.05 | −8% |
Brought in to order — we confirm the date after checking with the manufacturer.
Shipping within the EU: DHL, GLS, from EUR 13.16 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Symbol (SKU)TKVD25X6000-W-0001-EWL-G3#N2N
EAN4054371375249
Opakowanie2 szt.
Minimum order2 szt.
Masa54.65 kg
Ten towar sprzedawany jest w opakowaniach po 2 szt.
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)RoHS / REACH compliance declaration (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
