Technical data
25 parametersIdentification
- Manufacturer
- INA
- Type
- Profile rail
- Part number (SKU)
- TKVD15X3000-W-U-0001-EWL-G3#N4
- EAN
- 4054366897275

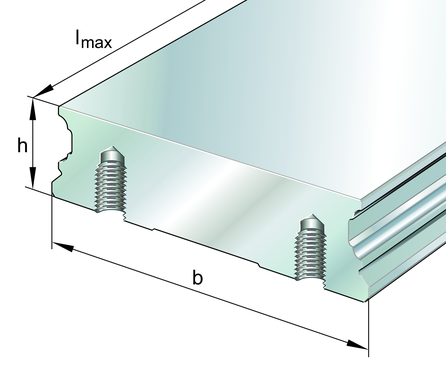

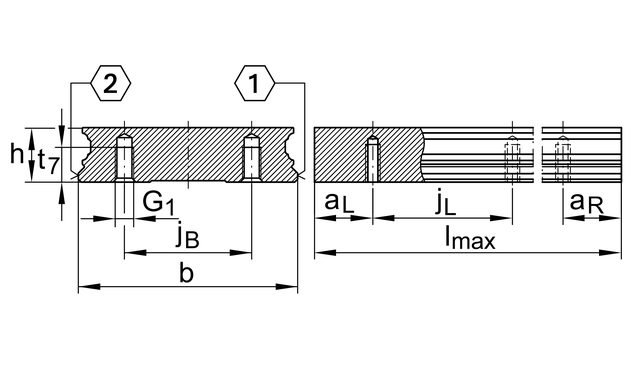

Dimensions
- Width B
- 37 mm
- Mass
- 10.47 kg
Full manufacturer specification19 parameters · expand
- ~guideway length
- 3000.0 mm
- ~Guideway length
- ~3000
- Accuracy class
- G3
- Distance
- 10.0 mm
- Guideway design
- W
- Height
- 12.9 mm
- Increment
- 50.0 mm
- Lower tolerance
- -0.035 mm
- Max length single piece guideway
- 2950.0 mm
- PFAS
- no
- REACH
- REACH compliant for SVHC free linear products (acc to PL responsibles)
- RoHS
- RoHS compliant
- Size code
- 15
- Thread
- M5
- Thread length
- 7.0 mm
- Tightening torque
- 10.0 Nm
- Upper tolerance
- -0.005 mm
- Usable carriage(s)
- KWVE15-W...
- Usable linear systems
- KUVE15-W...
Classification
- Manufacturer category
- Linear Motion › Monorail Guidance Systems › Four-row Linear Recirculating Ball Bearing (O-arrangement) › Guideways
- eCl@ss class
- 23-30-04-02
- UNSPSC
- 31171506
Description
Guideways for four-row linear recirculating ball bearing and guideway assembly KUVE..-W, wide guideway, suitable for screw mounting from below
INA
TKVD15X3000-W-U-0001-EWL-G3
Profile rail
od EUR 768.22net
+ VAT 23% = EUR 944.91 gross
To orderdate to be confirmed
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
TKVD15X3000-W-U-0001-EWL-G3—
EUR 768.22
Cheaper in larger quantities
| from 5 pcs | EUR 745.18 | −3% |
| from 10 pcs | EUR 737.50 | −4% |
| from 25 pcs | EUR 722.13 | −6% |
| from 50 pcs | EUR 706.77 | −8% |
Brought in to order — we confirm the date after checking with the manufacturer.
Shipping within the EU: DHL, GLS, from EUR 13.16 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Symbol (SKU)TKVD15X3000-W-U-0001-EWL-G3#N4
EAN4054366897275
Opakowanie4 szt.
Minimum order4 szt.
Masa10.47 kg
Ten towar sprzedawany jest w opakowaniach po 4 szt.
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)RoHS / REACH compliance declaration (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
