Description

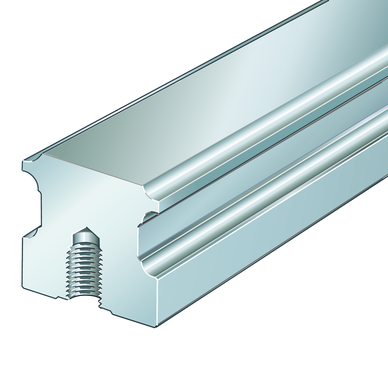

Guideways for six-row linear recirculating ball bearing and guideway assembly, for screw mounting from below
INA
TKSD25X6000-U-0001-EWL-G2
Profile rail
od EUR 1,481.31z VAT
netto EUR 1,204.32 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
TKSD25X6000-U-0001-EWL-G2—
EUR 1,481.31
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)TKSD25X6000-U-0001-EWL-G2#N6
EAN4054369735406
Opakowanie6 szt.
Minimum order6 szt.
Masa19.58 kg
Ten towar sprzedawany jest w opakowaniach po 6 szt.
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
23 parametersIdentification
- Manufacturer
- INA
- Type
- Profile rail
- Part number (SKU)
- TKSD25X6000-U-0001-EWL-G2#N6
- EAN
- 4054369735406

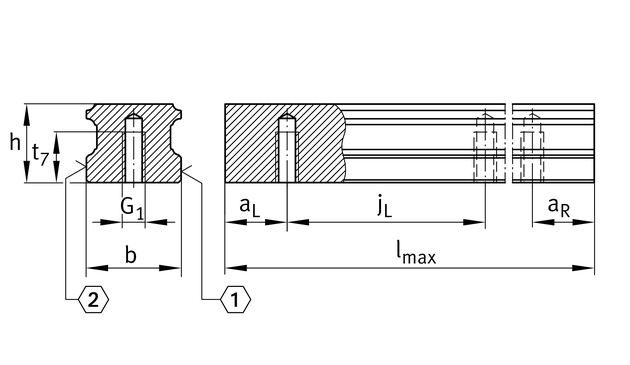

Dimensions
- Width B
- 23 mm
- Mass
- 19.58 kg
Full manufacturer specification17 parameters · expand
- ~Guideway length
- ~6000
- Accuracy class
- G2
- Distance
- 20.0 mm
- Fixing screws (DIN ISO 4762-12.9)
- M6
- Height
- 21.7 mm
- Increment
- 60.0 mm
- Location of guideway
- U
- Lower tolerance
- -0.035 mm
- Max length single piece guideway
- 6000.0 mm
- PFAS
- nein
- REACH
- REACH compliant for SVHC free linear products (acc to PL responsibles)
- Size code
- 25
- Thread length
- 12.0 mm
- Tightening torque
- 17.0 Nm
- Upper tolerance
- -0.005 mm
- Usable carriage(s)
- KWSE25...
- Usable linear systems
- KUSE25...
