Description

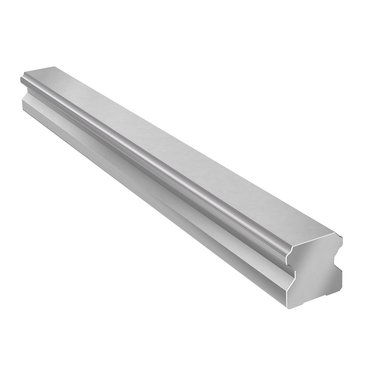

Guideways for linear ball bearing unit and four-row linear recirculating ball guidance system, for screw mounting from below
INA
TKLT15X4000-U-EWL-G3
Profile rail
od EUR 560.27z VAT
netto EUR 455.50 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
TKLT15X4000-U-EWL-G3—
EUR 560.27
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)TKLT15X4000-U-EWL-G3#N9
EAN4064328762718
Opakowanie9 szt.
Minimum order9 szt.
Masa6.24 kg
Ten towar sprzedawany jest w opakowaniach po 9 szt.
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
21 parametersIdentification
- Manufacturer
- INA
- Type
- Profile rail
- Part number (SKU)
- TKLT15X4000-U-EWL-G3#N9
- EAN
- 4064328762718
Dimensions
- Mass
- 6.24 kg
Full manufacturer specification16 parameters · expand

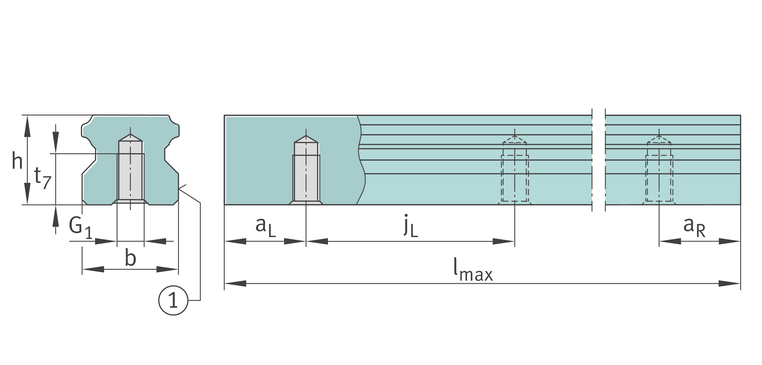

- ~Guideway length
- ~4000
- Accuracy class
- G3
- Distance
- 10.0 mm
- Guideway design
- U
- Height
- 14.0 mm
- Increment
- 60.0 mm
- Length
- 8.5 mm
- Material name
- TKLT
- Max length single piece guideway
- 3900.0 mm
- REACH
- REACH compliant for SVHC free linear products (acc to PL responsibles)
- Size code
- 15
- Thread
- M4
- Thread length
- 8.0 mm
- Thread, DIN ISO 4762-12.9
- M5
- Tightening torque
- 4.95 Nm
- Width rail
- 15.0 mm
