Technical data
21 parametersIdentification
- Manufacturer
- INA
- Type
- Profile rail
- Part number (SKU)
- TKLT15X4000-EWL-G3#N9
- EAN
- 4064328752078

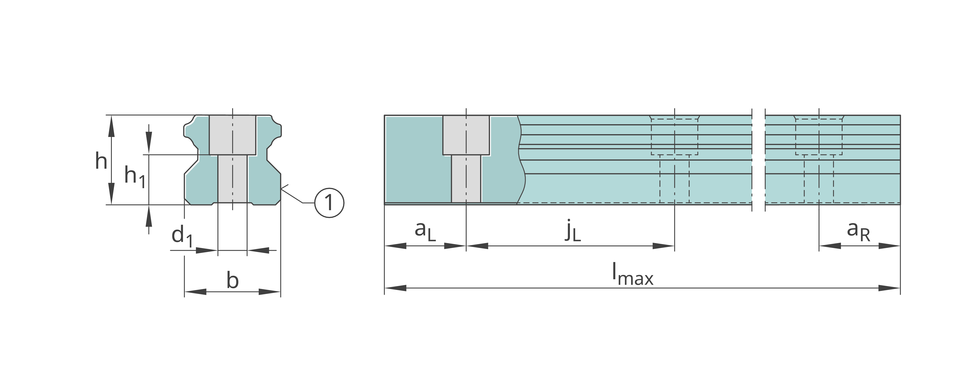

Dimensions
- Mass
- 6.22 kg
Full manufacturer specification16 parameters · expand
- ~Guideway length
- ~4000
- Accuracy class
- G3
- Distance
- 10.0 mm
- Height
- 14.0 mm
- Increment
- 60.0 mm
- Length
- 8.5 mm
- Material name
- TKLT
- Max length single piece guideway
- 3900.0 mm
- Rail width
- 15.0 mm
- REACH
- REACH compliant for SVHC free linear products (acc to PL responsibles)
- Size code
- 15
- Thread
- M4
- Thread length
- 8.0 mm
- Thread, DIN ISO 4762-12.9
- M5
- Through hole in guideway
- 4.6 mm
- Tightening torque
- 4.95 Nm
Classification
- eCl@ss class
- 23-30-90-90
Description
Guideways for linear recirculating ball bearing unit and four-row linear recirculating ball guidance system
INA
TKLT15X4000-EWL-G3

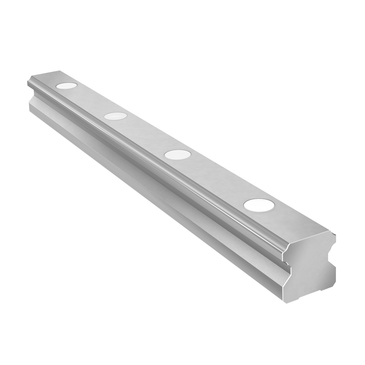

Profile rail
od EUR 474.74net
+ VAT 23% = EUR 583.93 gross
To orderdate to be confirmed
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
TKLT15X4000-EWL-G3—
EUR 474.74
Cheaper in larger quantities
| from 5 pcs | EUR 460.50 | −3% |
| from 10 pcs | EUR 455.75 | −4% |
| from 25 pcs | EUR 446.26 | −6% |
| from 50 pcs | EUR 436.76 | −8% |
Brought in to order — we confirm the date after checking with the manufacturer.
Shipping within the EU: DHL, GLS, from EUR 13.16 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Symbol (SKU)TKLT15X4000-EWL-G3#N9
EAN4064328752078
Opakowanie9 szt.
Minimum order9 szt.
Masa6.22 kg
Ten towar sprzedawany jest w opakowaniach po 9 szt.
