Description
Crossed roller bearingsdimension series 18 to DIN 616
INA
SX011828-A-VSP+PRL50

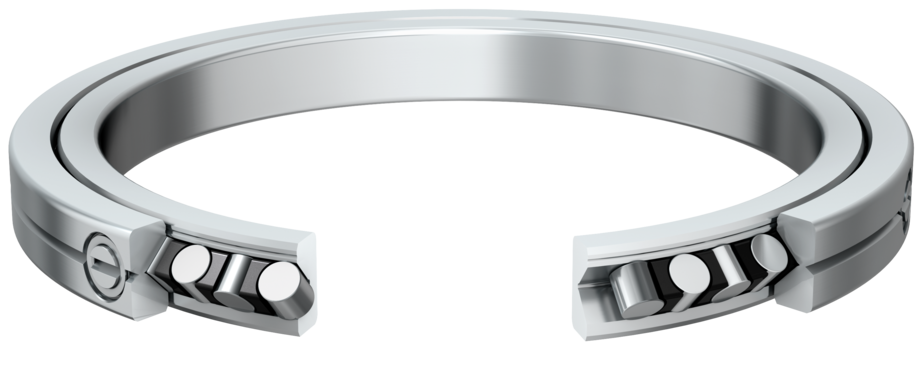

Crossed roller bearing
od EUR 1,120.73z VAT
netto EUR 911.16 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
SX011828-A-VSP+PRL50—
EUR 1,120.73
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)SX011828-A-VSP+PRL50#N1
EAN4054366267856
Masa1.09 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
42 parametersIdentification
- Manufacturer
- INA
- Type
- Crossed roller bearing
- Part number (SKU)
- SX011828-A-VSP+PRL50#N1
- EAN
- 4054366267856

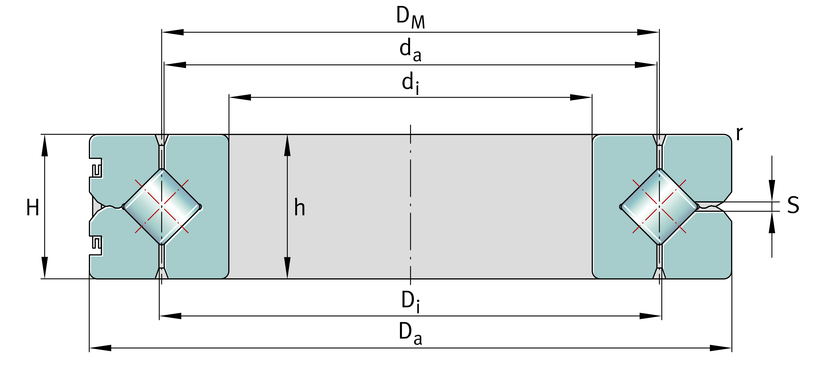

Dimensions
- Mass
- 1.09 kg
Load ratings and operation
- Dynamic load rating C
- 64000 N
- Static load rating C₀
- 223000 N
Full manufacturer specification35 parameters · expand
- Basic dynamic load rating, axial
- 64000.0 N
- Basic dynamic load rating, radial (for radial load only)
- 45500.0 N
- Basic static load rating, axial
- 223000.0 N
- Basic static load rating, radial (for radial load only)
- 109000.0 N
- Bore Diameter
- 140.0 mm
- Bore diameter lower tolerance
- -0.021 mm
- Bore diameter upper tolerance
- 0.004 mm
- Chamfer dimension
- 1.1 mm
- Diameter of lubrication hole
- 1.5 mm
- Dimensions identical to ISO dimension series 18
- 61828
- Height inner ring
- 18.0 mm
- Height of individual ring
- 18.0 mm
- Height of individual ring lower tolerance
- -0.01 mm
- Height of individual ring upper tolerance
- 0.0 mm
- Height of the assembled bearing
- 18.0 mm
- Inner diameter outer ring
- 157.7 mm
- Limiting speed for grease lubrication with preload
- 240.0 1/min
- Limiting speed for oil lubrication with preload
- 485.0 1/min
- Maximum bearing preload
- 0.02 mm
- Minimum bearing preload
- 0.005 mm
- Operating temperature max.
- 80.0 °C
- Operating temperature min.
- -30.0 °C
- Outer diameter inner ring
- 156.3 mm
- Outside Diameter
- 175.0 mm
- Outside diameter lower tolerance
- -0.025 mm
- Outside diameter upper tolerance
- 0.0 mm
- PFAS
- nein
- Preload
- VSP+PRL50
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Rolling element pitch circle diameter
- 157.0 mm
- Running accuracy, axial
- 0.005 mm
- Running accuracy, radial
- 0.008 mm
- Width lower tolerance
- -0.06 mm
- Width upper tolerance
- 0.06 mm
