Technical data
29 parametersIdentification
- Manufacturer
- INA
- Part number (SKU)
- SRM01#N1
- EAN
- 4054366690661
Dimensions
- Mass
- 550 g
Full manufacturer specification25 parameters · expand
- Bolting torque max
- 10.0 Nm
- Bolting torque min
- 9.0 Nm

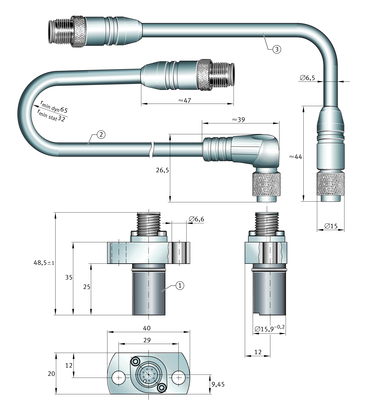

- Bore diameter sensor SRMH
- 6.6 mm
- Bore pitch width sensor SRMH
- 29.0 mm
- Current consumption
- 280.0 mA
- Cylinder head screws SRMB
- ISO4762 M4X10-8.8
- Cylinder head screws SRMH
- ISO4762 M6x20-8.8
- Diameter sensor housing SRMH
- 15.9 mm
- Electronic interface
- SIN COS 1Vpp + reference signal
- Flange length sensor SRMH
- 40.0 mm
- Flange width sensor SRMH
- 20.0 mm

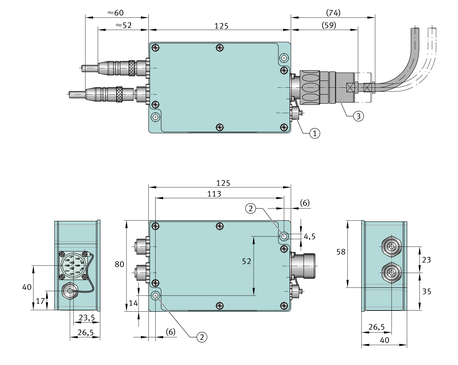

- Height SRMB
- 40.0 mm
- Ingress protection
- IP 65
- Length SRMB exclud plugs
- 125.0 mm
- Length SRMB total
- 236.0 mm
- Length SRMH cylindrical housing
- 25.0 mm
- Length SRMH excluding plugs
- 35.0 mm
- Length SRMH total
- 48.5 mm
- Number pins plug connector
- 12.0
- Operating temperature max
- 70.0 °C
- Operating temperature min
- 0.0 °C
- PFAS
- no
- Supply voltage
- 5.0 V DC
- Thread plug connector
- M23x1
- Width SRMB
- 80.0 mm
Classification
- Manufacturer category
- Rolling and Plain Bearings › Accessories › Other Accessories
- eCl@ss class
- 27-20-16-01
- UNSPSC
- 41112802
Description

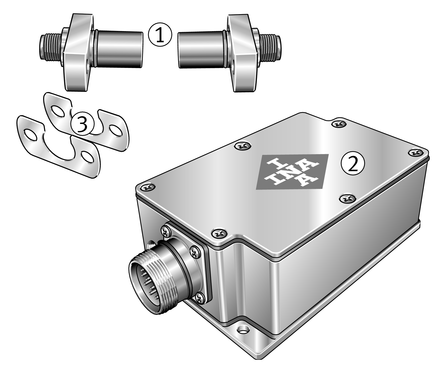

Measuring heads, with shims and electronic evaluation system
INA
SRM01
od EUR 2,145.77net
+ VAT 23% = EUR 2,639.30 gross
To orderdate to be confirmed
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
SRM01—
EUR 2,145.77
Cheaper in larger quantities
| from 5 pcs | EUR 2,059.94 | −4% |
| from 10 pcs | EUR 2,038.48 | −5% |
| from 25 pcs | EUR 1,995.57 | −7% |
| from 50 pcs | EUR 1,952.65 | −9% |
Brought in to order — we confirm the date after checking with the manufacturer.
Shipping within the EU: DHL, GLS, from EUR 13.16 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Symbol (SKU)SRM01#N1
EAN4054366690661
Masa550 g
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
