Technical data
21 parametersIdentification
- Manufacturer
- FAG
- Type
- Plummer block housing
- Part number (SKU)
- SNV300-F-L#N1
- EAN
- 4012802385700
Dimensions
- Outside diameter D
- 300 mm
- Mass
- 72.13 kg
Full manufacturer specification15 parameters · expand

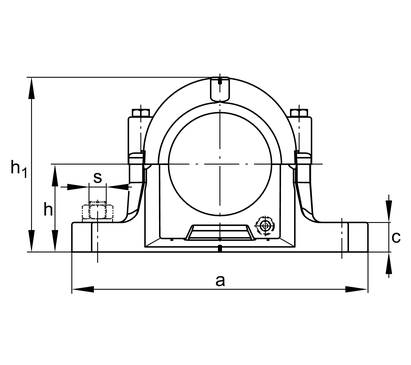

- Base to shaft centerline height
- 180.0 mm

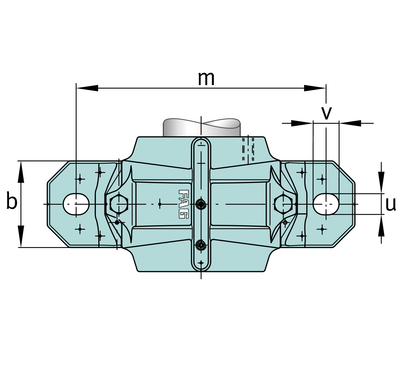

- Fixing bore spacing
- 520.0 mm
- Fixing screw size
- M30
- Height
- 366.0 mm
- Height base
- 65.0 mm
- Length base
- 620.0 mm
- Length slot
- 42.0 mm
- PFAS
- no
- REACH
- REACH compliant with declarable lead proportion
- RoHS
- RoHS compliant with declarable substances
- Screw size
- 1.25 inch
- Wall thickness
- 18.0 mm
- Width base
- 170.0 mm
- Width housing body
- 215.0 mm
- Width slot
- 35.0 mm
Classification
- Manufacturer category
- Housings › Split Plummer Block Housings › Split Plummer Block Housings SES
- eCl@ss class
- 23-05-17-01
- UNSPSC
- 31171519
Description

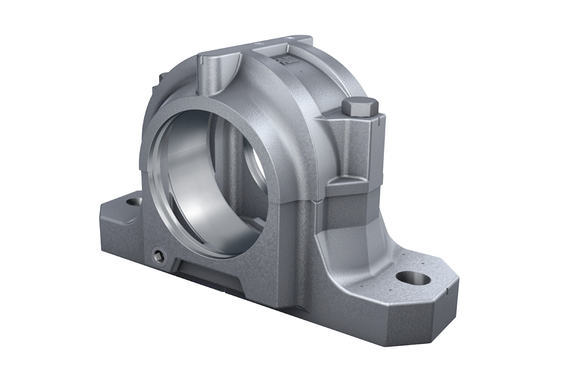

Split plummer block housing for various bearing designs. The SNV series will be replaced by the new SES series in 2022.
FAG
SNV300-F-L
Plummer block housing
od EUR 1,126.86net
+ VAT 23% = EUR 1,386.04 gross
To orderdelivery 9 November
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
SNV300-F-L—
EUR 1,126.86
Cheaper in larger quantities
| from 5 pcs | EUR 1,093.06 | −3% |
| from 10 pcs | EUR 1,081.79 | −4% |
| from 25 pcs | EUR 1,059.25 | −6% |
| from 50 pcs | EUR 1,036.71 | −8% |
Brought in to order — we confirm the date after checking with the manufacturer.
Shipping within the EU: DHL, GLS, from EUR 13.16 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Symbol (SKU)SNV300-F-L#N1
EAN4012802385700
Masa72.13 kg
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)RoHS / REACH compliance declaration (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
