Technical data
23 parametersIdentification
- Manufacturer
- FAG
- Type
- Plummer block housing
- Part number (SKU)
- SNS3138-B-D#N1
- EAN
- 4054369020038
Dimensions
- Mass
- 95.10 kg
Full manufacturer specification18 parameters · expand

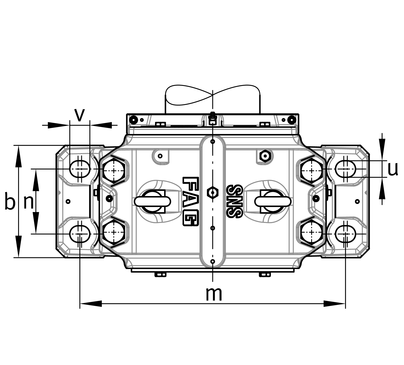

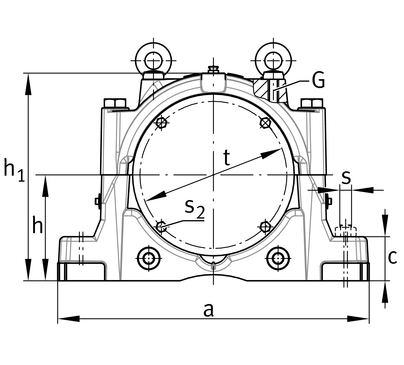

- Base height
- 80.0 mm
- Base hole distance 1
- 480.0 mm
- Base hole distance 2
- 120.0 mm
- Base hole length
- 34.0 mm
- Base hole width
- 28.0 mm
- Base width
- 210.0 mm

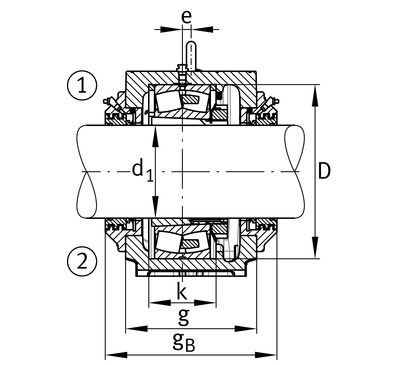

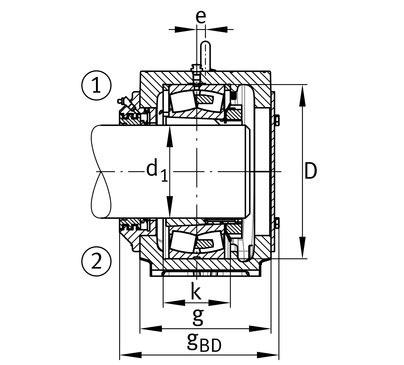

- Bearing seat
- 320.0 mm
- Bearing seat width
- 124.0 mm
- Center height
- 190.0 mm
- Center offset
- 10.0 mm
- Housing height
- 375.0 mm
- Housing width
- 260.0 mm
- Length base
- 560.0 mm
- Material
- D
- PFAS
- no
- REACH
- REACH compliant
- RoHS
- RoHS compliant
- Screw size base hole fixing
- M24
Classification
- Manufacturer category
- Housings › Split Plummer Block Housings › Split Plummer Block Housings SNS
- eCl@ss class
- 23-05-17-01
- UNSPSC
- 31171519
Description

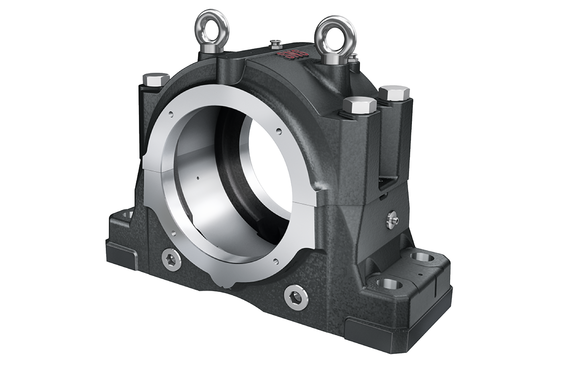

Plummer block housing, split, for spherical roller bearings, metric shaft diameters, Bolt-On design, for grease lubrication
FAG
SNS3138-B-D
Plummer block housing
od EUR 1,559.19net
+ VAT 23% = EUR 1,917.80 gross
To orderdate to be confirmed
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
SNS3138-B-D—
EUR 1,559.19
Cheaper in larger quantities
| from 5 pcs | EUR 1,496.82 | −4% |
| from 10 pcs | EUR 1,481.23 | −5% |
| from 25 pcs | EUR 1,450.05 | −7% |
| from 50 pcs | EUR 1,418.86 | −9% |
Brought in to order — we confirm the date after checking with the manufacturer.
Shipping within the EU: DHL, GLS, from EUR 13.16 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Symbol (SKU)SNS3138-B-D#N1
EAN4054369020038
Masa95.10 kg
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)RoHS / REACH compliance declaration (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
