Technical data
31 parametersIdentification
- Manufacturer
- FAG
- Type
- Plummer block housing
- Part number (SKU)
- SES508-607-L#N1
- EAN
- 4064327528445

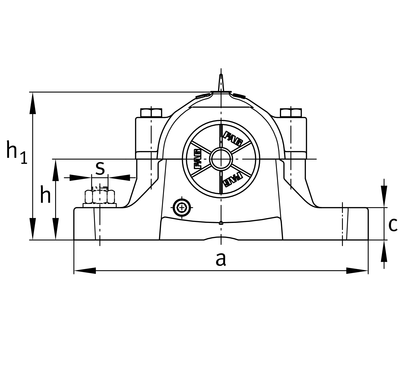

Dimensions
- Outside diameter D
- 80 mm
- Mass
- 3.02 kg
Full manufacturer specification25 parameters · expand
- Base to shaft centerline height
- 60.0 mm

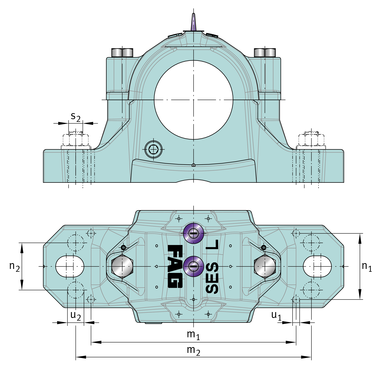

- Bore diameter u1
- 4.0 mm
- Bore diameter u2
- 11.0 mm
- Diameter sealing
- 51.5 mm
- Diameter sealing groove
- 59.5 mm

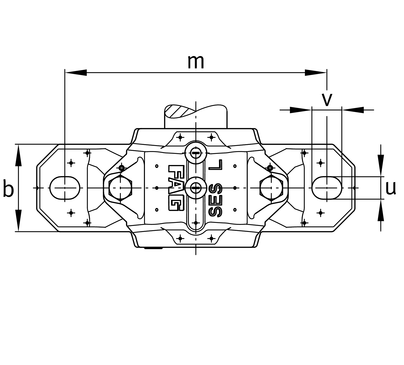

- Distance holes aligned pins m1
- 137.0 mm
- Distance lubriaction sealing
- 71.0 mm
- Distance lubrication
- 52.0 mm
- Distance oil lubricatian
- 28.0 mm
- Distance sealing
- 69.0 mm
- Fixing bore spacing
- 170.0 mm
- Fixing screw size
- M12
- Height
- 108.0 mm
- Height base
- 25.0 mm
- Length base
- 205.0 mm
- Length slot
- 20.0 mm
- Outside diameter sealing labyrinth
- 57.7 mm
- PFAS
- no
- Screw size
- 0.5 inch
- Wall thickness
- 11.0 mm
- Width base
- 60.0 mm
- Width bearing seat
- 39.0 mm
- Width housing body
- 85.0 mm
- Width sealing groove
- 5.0 mm
- Width slot
- 15.0 mm
Classification
- Manufacturer category
- Housings › Split Plummer Block Housings › Split Plummer Block Housings SES
- eCl@ss class
- 23-05-17-01
- UNSPSC
- 31171519
Description

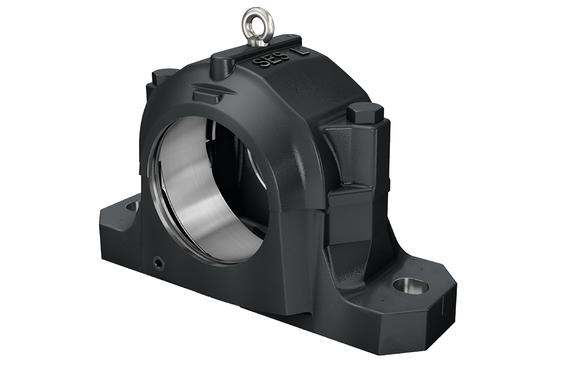

Split plummer block housing for various bearing designs. The SNV series will be replaced by the new SES series in 2022.
FAG
SES508-607-L
Plummer block housing
od EUR 42.27net
+ VAT 23% = EUR 51.99 gross
To orderdate to be confirmed
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
SES508-607-L—
EUR 42.27
Cheaper in larger quantities
| from 5 pcs | EUR 41.43 | −2% |
| from 10 pcs | EUR 41.00 | −3% |
| from 25 pcs | EUR 40.16 | −5% |
| from 50 pcs | EUR 39.31 | −7% |
Brought in to order — we confirm the date after checking with the manufacturer.
Shipping within the EU: DHL, GLS, from EUR 13.16 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Symbol (SKU)SES508-607-L#N1
EAN4064327528445
Masa3.02 kg
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
