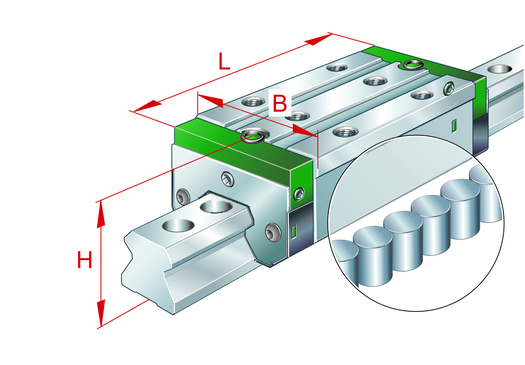

Product photo

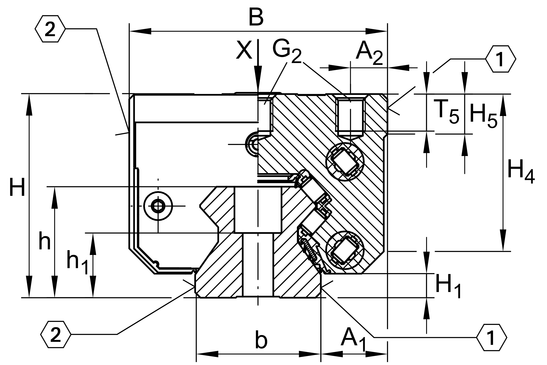

Technical drawing

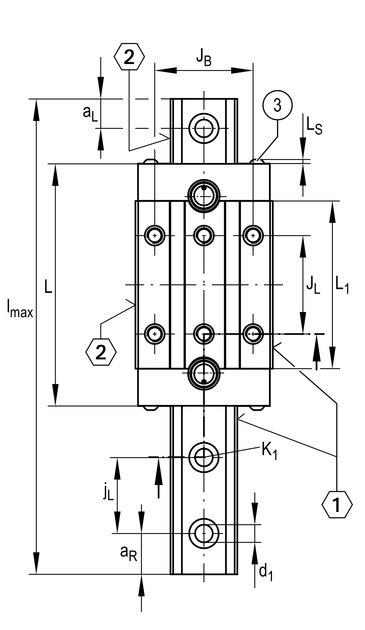

Rysunek techniczny 2

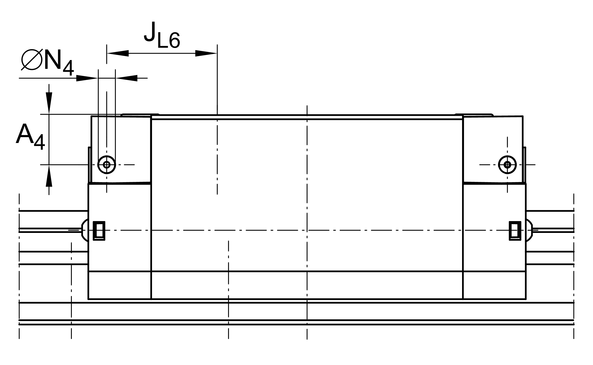

Rysunek techniczny 3

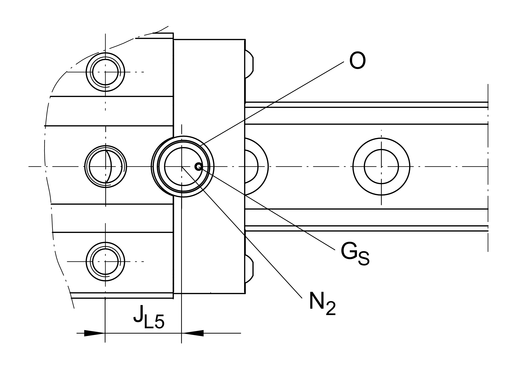

Rysunek techniczny 4

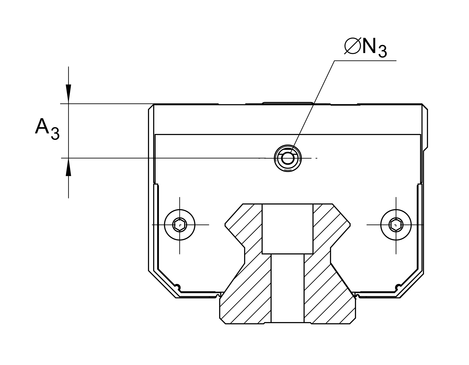

Rysunek techniczny 5
Rysunek techniczny 6

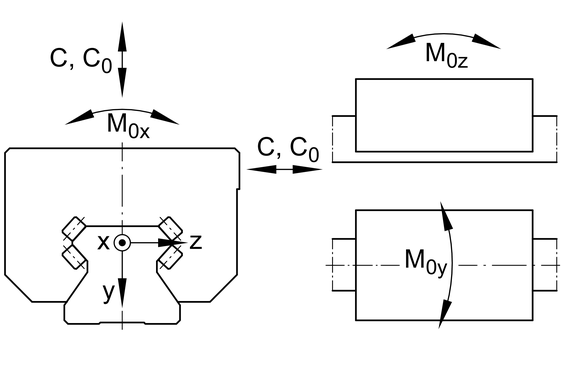

Rysunek techniczny 7

Description

High, narrow carriage with full complement recirculating roller system for linear recirculating roller bearing and guideway assembly, for oil or grease lubrication

INA

RWU25-E-H-V3-G2

Recirculating roller bearing carriage

od EUR 141.27z VAT

netto EUR 114.85 · cena detaliczna

EUR 188.35−25%

RWU25-E-H-V3-G2—

EUR 188.35

EUR 141.27

Cheaper in larger quantities

from 10 pcsEUR 145.47−5%
from 50 pcsEUR 147.00−4%
Last few (9)dispatch within 24 h

Dispatched within 24 h from our own warehouse

Symbol (SKU)RWU25-E-H-V3-G2#N1
EAN4054364489496
Masa583 g

Buying for a company?

A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.

Open a business account →

Technical data

33 parameters

Identification

Manufacturer
INA
Type
Recirculating roller bearing carriage
Part number (SKU)
RWU25-E-H-V3-G2#N1
EAN
4054364489496

Dimensions

Mass
583 g
Full manufacturer specification28 parameters · expand
Accuracy class
G2
Carriage design
H
Distance from locating edge on carriage to locating edge on guideway
12.5 mm
Distance from locating edge to hole
6.5 mm
Dynamic load rating
65000.0 N
Fixing screws below (DIN ISO 4762-12.9)
M6
Free space, system dimension
6.5 mm
Height system
40.0 mm
Lubrication connector
M6
Material name
RWU
Max. diameter of lubrication hole in adjacent construction
3.0 mm
Maximum permissible screw depth for lubrication connectors
6.0 mm
Maximum tightening torque
17.0 Nm
O-Ring DIN 3771
10x1,5
Overall length carriage
91.0 mm
PFAS
nein
Position lubrication connector
19.5 mm
Preload class
V3
REACH
REACH compliant with declarable lead proportion
RoHS
RoHS compliant with declarable substances
Size Code
25
Static moment rating about X axis
350.0 Nm
Static moment rating about Y axis
760.0 Nm
Static moment rating about Z axis
680.0 Nm
Thread depth
7.5 mm
Version
E
Width carriage
48.0 mm
Width rail
23.0 mm
