Description

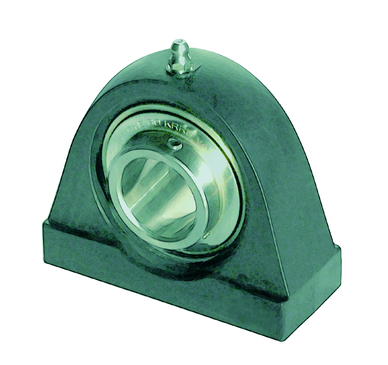

Plummer block housing unit RSHEY..-TV-VA, RIBB plastic
INA
RSHEY35-TV-VA-HLA
Plummer block housing unit
od EUR 150.77z VAT
netto EUR 122.58 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
RSHEY35-TV-VA-HLA—
EUR 150.77
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)RSHEY35-TV-VA-HLA#N1
EAN4054366726070
Masa790 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
48 parametersIdentification
- Manufacturer
- INA
- Type
- Plummer block housing unit
- Part number (SKU)
- RSHEY35-TV-VA-HLA#N1
- EAN
- 4054366726070
Dimensions
- Bore d
- 35 mm
- Width B
- 42.9 mm
- Mass
- 790 g
Full manufacturer specification41 parameters · expand
- Basic dynamic load rating
- 24600.0 N
- Basic static load rating
- 14600.0 N
- Bearing designation
- GYE35-KRR-B-FA107-VA
- Bearing in kit
- GYE35-KRR-B-FA107-VA
- Bearing sealed
- Yes
- Bearing sort
- RIBB
- Bearing split
- No
- Connection thread for lubrication
- 1/4 - 28 UNF
- Corrosion resistant bearing
- VA
- Distance between mounting bolt centerlines (length)
- 82.6 mm
- Distance fixing bore
- 82.6 mm
- Distance raceway
- 25.4 mm
- Distance shaft axis
- 47.6 mm
- End cap
- KASK07-S-G
- Height
- 95.0 mm
- Height bearing seat
- 47.6 mm
- Housing
- GEH-SHE07-TV
- Housing height
- 95.0 mm
- Housing in kit
- RSHEY35-TV-VA-HLA
- Housing length
- 110.0 mm
- Housing material
- PL
- Housing opening
- durchgehend
- Housing qty bolts
- 2
- Housing shape
- Fuss_kurz
- Housing sort
- Plummer
- Housing split
- Nein
- Housing width
- 47.5 mm
- Inner diameter bearing
- 35.0 mm
- Length
- 110.0 mm
- Location on shaft
- Acc
- Material
- TV
- Open protecting cap
- KASK07-S-R-NBR
- Operating temperature max.
- 80.0 °C
- Operating temperature min.
- -20.0 °C
- PFAS
- nein
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Sealing type
- LIP
- Special material
- TV
- Thread fixing bore
- M10
- Width (base)
- 47.5 mm
