Description

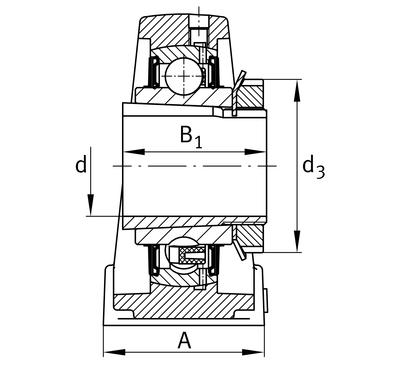

Plummer block housing units UKP, cast iron housing, with long base, radial insert ball bearing with adapter sleeve, RSR seals
FAG
UKP208-J7
Plummer block housing unit
⌀35 × 80 mm
od EUR 28.33z VAT
netto EUR 23.03 · cena detaliczna
EUR 37.48−24%
UKP208-J7—
EUR 37.48
EUR 28.33Cheaper in larger quantities
| from 10 pcs | EUR 29.86 | −2% |
| from 50 pcs | EUR 29.25 | −4% |
| from 250 pcs | EUR 28.94 | −5% |
Last few (11)dispatch within 24 h
Dispatched within 24 h from our own warehouse
Symbol (SKU)UKP208-J7#N1
EAN4047643261968
Wymiary⌀35 × 80 mm
Masa2.04 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
48 parametersIdentification
- Manufacturer
- FAG
- Type
- Plummer block housing unit
- Part number (SKU)
- UKP208-J7#N1
- EAN
- 4047643261968

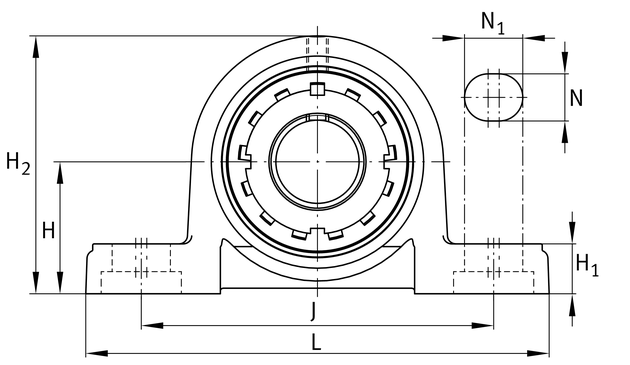

Dimensions
- Bore d
- 35 mm
- Outside diameter D
- 80 mm
- Mass
- 2.04 kg
Full manufacturer specification41 parameters · expand
- Basic dynamic load rating
- 34500.0 N
- Basic static load rating
- 19800.0 N
- Bearing designation
- UK208
- Bearing in kit
- UK208
- Bearing sealed
- Yes
- Bearing sort
- RIBB
- Bearing split
- No
- Connection thread for lubrication
- M6
- Distance between mounting bolt centerlines (length)
- 137.0 mm
- Distance fixing bore
- 137.0 mm
- Distance shaft axis
- 49.2 mm
- Height
- 98.0 mm
- Height (base)
- 18.0 mm
- Height bearing seat
- 49.2 mm
- Housing
- P208
- Housing clearance
- J7
- Housing height
- 98.0 mm
- Housing in kit
- UKP208-J7
- Housing length
- 184.0 mm
- Housing material
- GG
- Housing opening
- durchgehend
- Housing qty bolts
- 2
- Housing shape
- Fuss_lang
- Housing sort
- Plummer
- Housing split
- Nein
- Housing width
- 54.0 mm
- Inner diameter bearing
- 35.0 mm
- Length (slot)
- 21.0 mm
- Length total
- 184.0 mm
- Location on shaft
- K
- Locking collar total width
- 46.0 mm
- Material
- GG
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -20.0 °C
- Outer diameter bearing
- 80.0 mm
- PFAS
- nein
- REACH
- REACH compliant with declarable lead proportion
- RoHS
- RoHS compliant with declarable substances
- Sealing type
- LIP
- Width (base)
- 54.0 mm
- Width (slot)
- 17.0 mm
