Technical data

20 parameters

Identification

Manufacturer
INA
Type

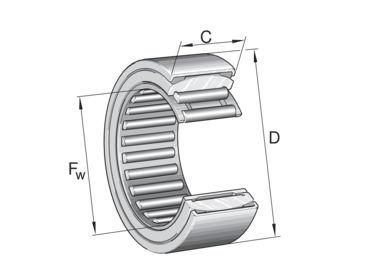

Aligning needle roller bearing
Part number (SKU)
RPNA35/52-XL#N1>1
EAN
4012802735857

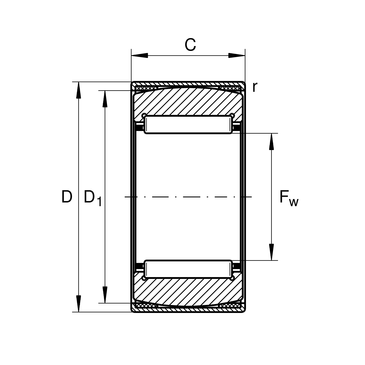

Dimensions

Outside diameter D
52 mm
Mass
141 g

Load ratings and operation

Dynamic load rating C
27500 N
Static load rating C₀
41500 N
Limiting speed
12900 1/min
Full manufacturer specification11 parameters · expand
Category
XL
Fatigue load limit, radial
7400.0 N
Flange diameter of outer cup
47.5 mm
Max. operating temperature
100.0 °C
Min. operating temperature
-20.0 °C
Minimum chamfer
0.8 mm
Outer ring width
20.0 mm
PFAS
no
REACH
REACH compliant
RoHS
RoHS compliant
Under roller diameter
35.0 mm

Classification

Manufacturer category
Rolling and Plain Bearings › Roller Bearings › Needle Roller Bearings › Aligning Needle Roller Bearings
eCl@ss class
23-05-09-07
UNSPSC
31171512

Description

This needle roller bearing is designed as a self-aligning unit and is supplied without an inner ring. The outside diameter is 52.0 mm, the net mass is 141.0 g, and the limiting speed reaches 12900.0 1/min. The self-aligning design compensates for shaft misalignment, allowing reliable operation even when perfect shaft-to-housing alignment cannot be maintained. Since the bearing has no inner ring, the shaft surface itself serves as the running surface for the needle rollers, which requires an appropriate shaft hardness and surface finish. The self-aligning capability makes this bearing suitable where angular deflection of the shaft occurs during operation, while the stated limiting speed defines the maximum rotational speed the bearing can sustain under the given conditions.

The same bearing from other manufacturers (2 designations)

Same size and design — suffix notation differs between brands.

Comparison and details →

INA

RPNA35/52-XL

original — this page

equivalent designation

NTN

RPNA35/52

SKF

RPNA35/52

This is a dimensional and design equivalent, not the same product. If in doubt, ask us before ordering.

INA

RPNA35/52-XL

Common designation: RPNA35/52

Aligning needle roller bearing

od EUR 27.30net

+ VAT 23% = EUR 33.58 gross

Last few (4)dispatch within 24 h
RPNA35/52-XL—
EUR 27.30

Cheaper in larger quantities

from 5 pcsEUR 26.75−2%
from 10 pcsEUR 26.48−3%
from 25 pcsEUR 25.94−5%
from 50 pcsEUR 25.39−7%

Dispatched within 24 h from our own warehouse

Shipping within the EU: DHL, GLS, from EUR 13.18 net. Transit time 3–5 business days after dispatch. Shipping and returns →

Symbol (SKU)RPNA35/52-XL#N1>1
EAN4012802735857
Masa141 g

Buying for a company?

Open a business account →

Documentation

Datasheet (PDF)RoHS / REACH compliance declaration (PDF)

Opening a document for the first time can take up to a minute while the manufacturer prepares it.
