Description

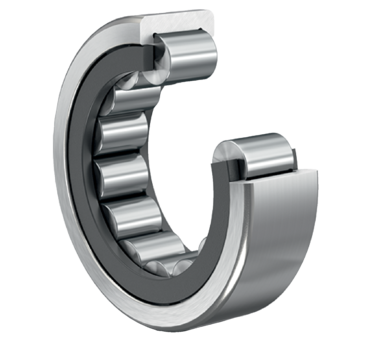

Cylindrical roller bearing RNU..-E-XL-TVP2, with cage, single row, non-locating bearing, 2 ribs on outer ring, no inner ring, type RNU
FAG
RNU202-E-XL-TVP2
Cylindrical roller bearing
od EUR 23.23z VAT
netto EUR 18.89 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
RNU202-E-XL-TVP2—
EUR 23.23
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)RNU202-E-XL-TVP2#S336
EAN4064327638779
Opakowanie336 szt.
Minimum order336 szt.
Masa37 g
Ten towar sprzedawany jest w opakowaniach po 336 szt.
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
29 parametersIdentification
- Manufacturer
- FAG
- Type
- Cylindrical roller bearing
- Part number (SKU)
- RNU202-E-XL-TVP2#S336
- EAN
- 4064327638779
- Cage
- TVP2
- Tolerance class
- PN

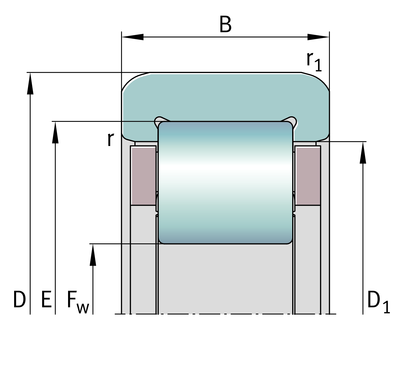

Dimensions
- Outside diameter D
- 35 mm
- Width B
- 11 mm
- Mass
- 37 g
Load ratings and operation
- Dynamic load rating C
- 15100 N
- Static load rating C₀
- 10400 N
- Limiting speed
- 31000 1/min
Full manufacturer specification17 parameters · expand
- Cage
- TVP2
- Design
- E
- Fatigue load limit, radial
- 1640.0 N
- Marketing category
- XL
- Maximum diameter of housing shoulder
- 32.6 mm
- Maximum recess radius
- 0.6 mm
- Minimum chamfer dimension
- 0.6 mm
- Minimum rib diameter outer ring
- 28.0 mm
- Number of rows
- 1
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -30.0 °C
- PFAS
- nein
- Raceway diameter inner ring
- 19.3 mm
- Raceway diameter outer ring
- 30.3 mm
- REACH
- REACH conform
- Reference speed
- 17900.0 1/min
- RoHS
- RoHS compliant
