Description

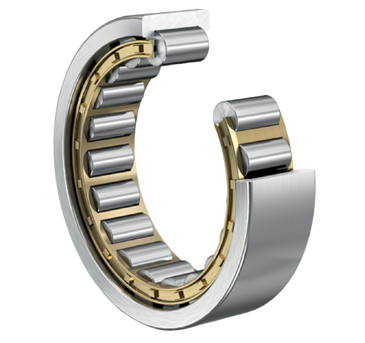

Cylindrical roller bearing RNU..-XL-M1, with cage, single row, non-locating bearing, 2 ribs on outer ring, no inner ring, type RNU
FAG
RNU1024-XL-M1
Cylindrical roller bearing
od EUR 263.43z VAT
netto EUR 214.17 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
RNU1024-XL-M1—
EUR 263.43
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)RNU1024-XL-M1#N1
EAN4012801630979
Masa1.80 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
29 parametersIdentification
- Manufacturer
- FAG
- Type
- Cylindrical roller bearing
- Part number (SKU)
- RNU1024-XL-M1#N1
- EAN
- 4012801630979
- Cage
- M1
- Tolerance class
- PN

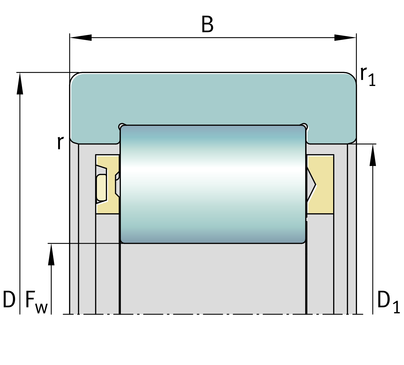

Dimensions
- Outside diameter D
- 180 mm
- Width B
- 28 mm
- Mass
- 1.80 kg
Load ratings and operation
- Dynamic load rating C
- 175000 N
- Static load rating C₀
- 208000 N
- Limiting speed
- 7300 1/min
Full manufacturer specification17 parameters · expand
- Cage
- M1
- Design
- Standard
- Fatigue load limit, radial
- 32500.0 N
- Marketing category
- XL
- Maximum diameter of housing shoulder
- 171.0 mm
- Maximum recess radius
- 2.0 mm
- Minimum chamfer dimension
- 2.0 mm
- Minimum rib diameter outer ring
- 159.7 mm
- Number of rows
- 1
- Operating temperature max.
- 150.0 °C
- Operating temperature min.
- -30.0 °C
- PFAS
- nein
- Raceway diameter inner ring
- 135.0 mm
- Raceway diameter outer ring
- 165.0 mm
- REACH
- REACH compliant with declarable lead proportion
- Reference speed
- 3550.0 1/min
- RoHS
- RoHS compliant with declarable substances
