Technical data
27 parametersIdentification
- Manufacturer
- INA
- Type
- Needle roller bearing
- Part number (SKU)
- RNAO45X62X40-ZW-ASR1-XL#N1>1
- EAN
- 4012802735505

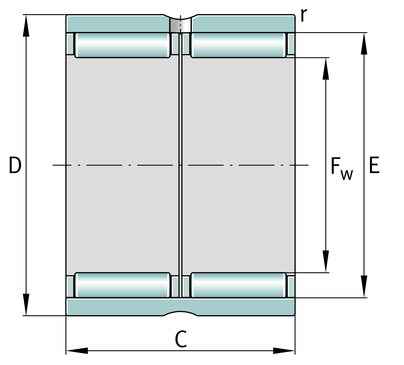

Dimensions
- Outside diameter D
- 62 mm
- Mass
- 377 g
Load ratings and operation
- Dynamic load rating C
- 76000 N
- Static load rating C₀
- 135000 N
- Limiting speed
- 10000 1/min
Full manufacturer specification18 parameters · expand
- Category
- XL
- Fatigue load limit, radial
- 21900.0 N
- Lubrication hole
- ASR1
- Max. operating temperature
- 120.0 °C
- Maximum recess radius
- 0.3 mm
- Min. operating temperature
- -30.0 °C
- Minimum chamfer
- 0.3 mm
- Number of rows
- ZW
- Outer ring raceway diameter
- 53.0 mm
- Outer ring shoulder diameter
- 53.5 mm
- Outer ring width
- 40.0 mm
- PFAS
- no
- REACH
- REACH compliant
- Reference speed
- 5900.0 1/min
- RoHS
- RoHS compliant
- Shoulder diameter axial guidance NK/housing
- 45.6 mm
- Shoulder diameter axial guidance NK/shaft
- 52.2 mm
- Under roller diameter
- 45.0 mm
Classification
- Manufacturer category
- Rolling and Plain Bearings › Roller Bearings › Needle Roller Bearings › Machined Needle Roller Bearings
- eCl@ss class
- 23-05-09-07
- UNSPSC
- 31171512
Designation changes
Replaces the discontinued designation: RNAO45X62X40
Description

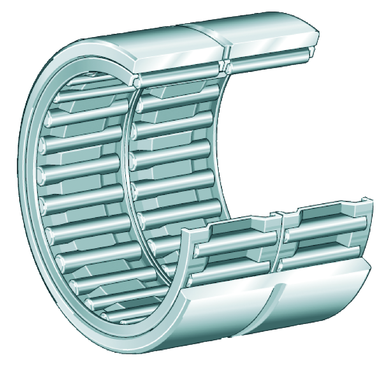

Needle roller bearings RNAO..-ZW-ASR1, without ribs, double row
The same bearing from other manufacturers (2 designations)
Same size and design — suffix notation differs between brands.
INA
RNAO45X62X40-ZW-ASR1-XL
original — this page
equivalent designation
NTN
RNAO45X62X40ZW
SKF
RNAO45X62X40
This is a dimensional and design equivalent, not the same product. If in doubt, ask us before ordering.
RNAO45X62X40-ZW-ASR1-XL
Common designation: RNAO45X62X40 ZW ASR1
Needle roller bearing
od EUR 78.61net
+ VAT 23% = EUR 96.69 gross
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
Cheaper in larger quantities
| from 5 pcs | EUR 77.04 | −2% |
| from 10 pcs | EUR 76.25 | −3% |
| from 25 pcs | EUR 74.68 | −5% |
| from 50 pcs | EUR 73.11 | −7% |
Brought in to order — we confirm the date after checking with the manufacturer.
Shipping within the EU: DHL, GLS, from EUR 13.16 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)RoHS / REACH compliance declaration (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
