Technical data
27 parametersIdentification
- Manufacturer
- INA
- Type
- Needle roller bearing
- Part number (SKU)
- RNAO22X30X13-XL#N1>1
- EAN
- 4012802735277
- Cage
- Standard

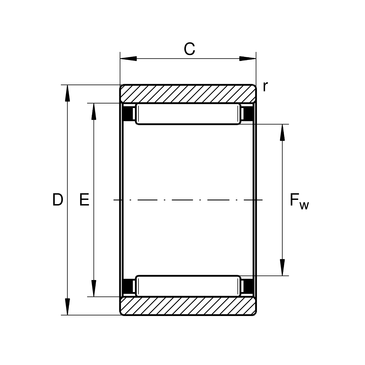

Dimensions
- Outside diameter D
- 30 mm
- Mass
- 33.32 g
Load ratings and operation
- Dynamic load rating C
- 11800 N
- Static load rating C₀
- 15900 N
- Limiting speed
- 20400 1/min
Full manufacturer specification17 parameters · expand
- Cage
- Standard
- Category
- XL
- Fatigue load limit, radial
- 2600.0 N
- Max. operating temperature
- 120.0 °C
- Maximum recess radius
- 0.3 mm
- Min. operating temperature
- -30.0 °C
- Minimum chamfer
- 0.3 mm
- Outer ring raceway diameter
- 26.0 mm
- Outer ring shoulder diameter
- 26.3 mm
- Outer ring width
- 13.0 mm
- PFAS
- no
- REACH
- REACH compliant
- Reference speed
- 12400.0 1/min
- RoHS
- RoHS compliant

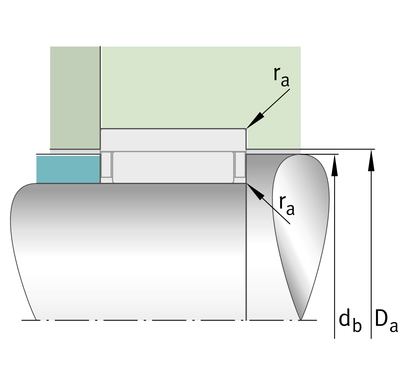

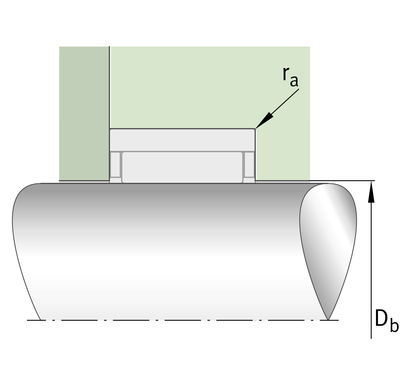

- Shoulder diameter axial guidance NK/housing
- 22.4 mm
- Shoulder diameter axial guidance NK/shaft
- 25.6 mm
- Under roller diameter
- 22.0 mm
Classification
- Manufacturer category
- Rolling and Plain Bearings › Roller Bearings › Needle Roller Bearings › Machined Needle Roller Bearings
- eCl@ss class
- 23-05-09-07
- UNSPSC
- 31171512
Description
Needle roller bearings RNAO, without ribs
The same bearing from other manufacturers (2 designations)
Same size and design — suffix notation differs between brands.
INA
RNAO22X30X13-XL
original — this page
equivalent designation
NTN
RNAO22X30X13
SKF
RNAO22X30X13
This is a dimensional and design equivalent, not the same product. If in doubt, ask us before ordering.
RNAO22X30X13-XL
Common designation: RNAO22X30X13
Needle roller bearing
od EUR 20.19net
+ VAT 23% = EUR 24.83 gross
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
Cheaper in larger quantities
| from 5 pcs | EUR 19.79 | −2% |
| from 10 pcs | EUR 19.59 | −3% |
| from 25 pcs | EUR 19.18 | −5% |
| from 50 pcs | EUR 18.78 | −7% |
Brought in to order — we confirm the date after checking with the manufacturer.
Shipping within the EU: DHL, GLS, from EUR 13.16 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)RoHS / REACH compliance declaration (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
