Description
Needle roller bearings RNA, to DIN 617/ISO 1206
INA
RNA6907-ZW-XL
Radial roller bearing
od EUR 48.49z VAT
netto EUR 39.42 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
RNA6907-ZW-XL—
EUR 48.49
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)RNA6907-ZW-XL#N1>1
EAN4012802299403
Masa0.199 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
29 parametersIdentification
- Manufacturer
- INA
- Type
- Radial roller bearing
- Part number (SKU)
- RNA6907-ZW-XL#N1>1
- EAN
- 4012802299403
- Cage
- Standard

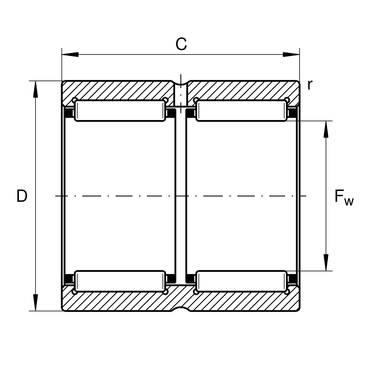

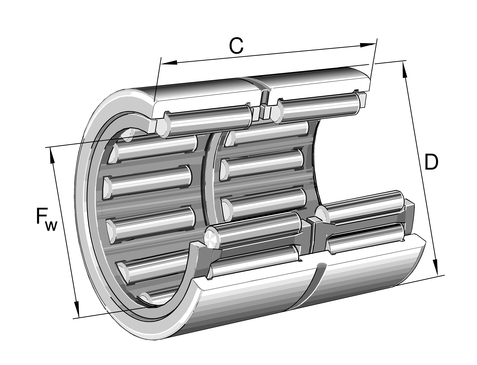

Dimensions
- Outside diameter D
- 55 mm
- Mass
- 0.199 g
Load ratings and operation
- Dynamic load rating C
- 54000 N
- Static load rating C₀
- 86000 N
- Limiting speed
- 10700 1/min
- Sealing
- Without
Full manufacturer specification18 parameters · expand
- Cage
- Standard
- Coating
- Without
- Fatigue load limit, radial
- 16200.0 N
- Limiting speed for grease lubrication
- 6400.0 1/min
- Lubrication hole
- With
- Marketing category
- XL
- Minimum chamfer dimension
- 0.6 mm
- Number of rows
- ZW
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -30.0 °C
- PFAS
- nein
- REACH
- REACH conform
- Reference speed
- 6200.0 1/min
- RoHS
- RoHS compliant
- Sealing
- Without
- Special features
- Without
- Under roller diameter
- 42.0 mm
- Width, outer ring
- 36.0 mm
