Technical data
21 parametersIdentification
- Manufacturer
- INA
- Type
- Yoke type track roller
- Part number (SKU)
- RNA2203-2RSR#N1
- EAN
- 4012802424027
Dimensions
- Outside diameter D
- 40 mm
- Mass
- 94.61 g
Load ratings and operation
- Dynamic load rating C
- 8900 N
- Static load rating C₀
- 13600 N
- Sealing
- 2RSR
Full manufacturer specification12 parameters · expand
- Fatigue load limit, radial
- 1890.0 N
- Minimum chamfer
- 1.0 mm
- Minimum mounting dimension
- 28.0 mm
- Outer ring profile
- R500
- Outer ring width
- 15.8 mm
- PFAS
- no
- Radius of outer ring outside profile
- 500.0 mm
- REACH
- REACH compliant
- RoHS
- RoHS compliant
- Sealing
- 2RSR
- Speed on permanent grease lubrication
- 3000.0 1/min
- Under roller diameter
- 22.0 mm
Classification
- Manufacturer category
- Rolling and Plain Bearings › Track Rollers, Yoke Type-, Stud Type Track Rollers › Yoke Type Track Rollers
- eCl@ss class
- 23-05-15-01
- UNSPSC
- 31171512
Description

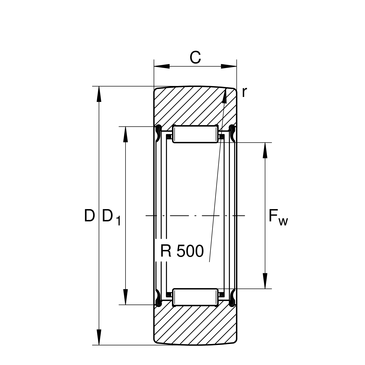

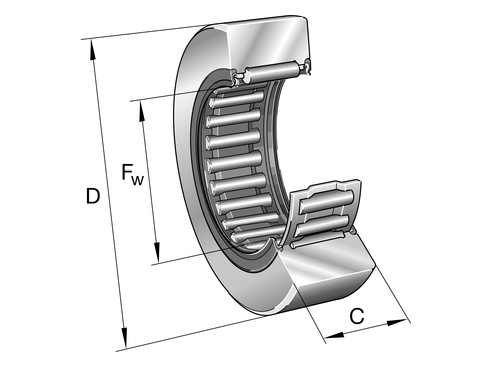

Yoke type track rollers RNA22..-2RSR, single row needle roller bearings with particularly thick-walled outer ring, needle roller and cage assembly, without inner ring, without axial guidance of the outer ring, lip seal radial sealing action on both sides, inner ring can be mounted separately
The same bearing from other manufacturers (1 designations)
Same size and design — suffix notation differs between brands.
INA
RNA2203-2RSR
original — this page
equivalent designation
NTN
RNA2203LL
This is a dimensional and design equivalent, not the same product. If in doubt, ask us before ordering.
RNA2203-2RSR
Common designation: RNA2203 2RS
Yoke type track roller
od EUR 29.26net
+ VAT 23% = EUR 35.99 gross
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
Cheaper in larger quantities
| from 5 pcs | EUR 28.68 | −2% |
| from 10 pcs | EUR 28.38 | −3% |
| from 25 pcs | EUR 27.80 | −5% |
| from 50 pcs | EUR 27.21 | −7% |
Our own item, temporarily out of stock — write to us for a date.
Shipping within the EU: DHL, GLS, from EUR 13.16 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)RoHS / REACH compliance declaration (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
