Description

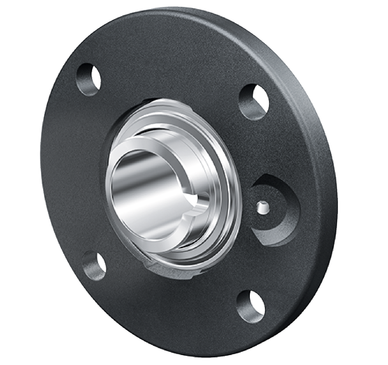

Flanged housing unit RMEL..-N
INA
RMEL30-N
Flanged housing unit
od EUR 62.20z VAT
netto EUR 50.57 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
RMEL30-N—
EUR 62.20
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)RMEL30-N#N1
EAN4012802822892
Masa960 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
44 parametersIdentification
- Manufacturer
- INA
- Type
- Flanged housing unit
- Part number (SKU)
- RMEL30-N#N1
- EAN
- 4012802822892

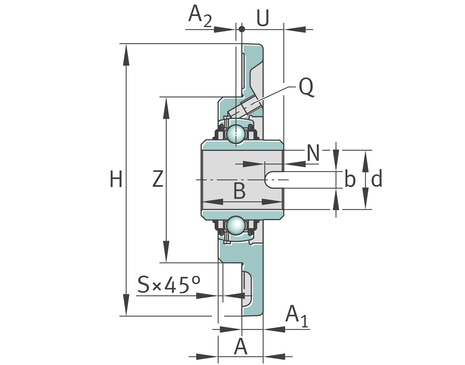

Dimensions
- Bore d
- 30 mm
- Width B
- 36.5 mm
- Mass
- 960 g
Load ratings and operation
- Dynamic load rating C
- 19500 N
- Static load rating C₀
- 11300 N
Full manufacturer specification35 parameters · expand
- Bearing designation
- GLE30-XL-KRR-B
- Bearing in kit
- GLE30-XL-KRR-B
- Bearing sealed
- Yes
- Bearing sort
- RIBB
- Bearing split
- No
- Connection thread for lubrication
- M6
- Diameter spigot
- 80.0 mm
- Distance raceway
- 2.0 mm
- Fatigue load limit, radial
- 520.0 N
- Fixing bore
- 11.5 mm
- Groove
- N
- Height flange
- 125.0 mm
- Height housing
- 20.5 mm
- Housing
- ME06-N
- Housing in kit
- RMEL30-N
- Housing material
- GG
- Housing opening
- durchgehend
- Housing qty bolts
- 4
- Housing shape
- Rund
- Housing sort
- Flanged
- Housing split
- Nein
- Inner diameter bearing
- 30.0 mm
- Location on shaft
- Acc
- Material
- GG
- Number of housings
- 1.0
- Number of screwing holes
- 4.0
- Operating temperature max.
- 180.0 °C
- Operating temperature min.
- -40.0 °C
- PFAS
- ja
- Pitch circle diameter (holes)
- 100.0 mm
- REACH
- REACH compliant with declarable lead proportion
- RoHS
- RoHS compliant with declarable substances
- Sealing type
- LIP
- Thickness of flange
- 9.5 mm
- Total height unit
- 36.5 mm
