INA
RCJTHOC20-VA-FD

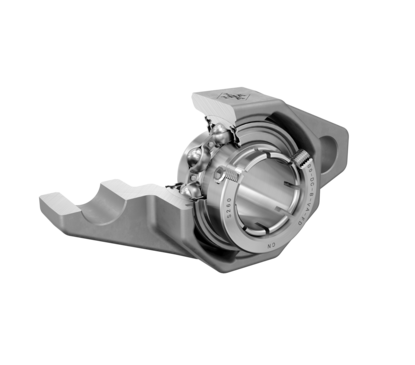

Flanged housing unit
od EUR 515.21z VAT
netto EUR 418.87 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
RCJTHOC20-VA-FD—
EUR 515.21
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)RCJTHOC20-VA-FD#N1
EAN4064328418202
Masa820 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
45 parametersIdentification
- Manufacturer
- INA
- Type
- Flanged housing unit
- Part number (SKU)
- RCJTHOC20-VA-FD#N1
- EAN
- 4064328418202
Dimensions
- Bore d
- 20 mm
- Mass
- 820 g
Load ratings and operation
- Dynamic load rating C
- 11100 N
- Static load rating C₀
- 5400 N
Full manufacturer specification37 parameters · expand
- Basic dynamic load rating
- 11100.0 N
- Basic static load rating
- 5400.0 N
- Bearing designation
- OCE20-DC-B-VA-FD
- Bearing sealed
- Yes
- Bearing sort
- RIBB
- Bearing split
- No
- Corrosion resistant bearing
- VA
- Distance between mounting bolt centerlines (length)
- 90.0 mm
- Distance fixing bore
- 90.0 mm
- Distance housing base
- 12.7 mm
- Distance raceway
- 27.7 mm
- Fatigue load limit, radial
- 500.0 N
- Fixing bore
- 12.0 mm
- Flange width
- 58.0 mm
- Height flange
- 113.0 mm
- Height housing
- 40.7 mm
- Housing
- GEH.CJTH04-VA-NAT
- Housing height
- 113.0 mm
- Housing length
- 58.0 mm
- Housing opening
- durchgehend
- Housing qty bolts
- 2
- Housing shape
- Oval
- Housing sort
- Flanged
- Housing split
- Nein
- Housing width
- 48.3 mm
- Inner diameter bearing
- 20.0 mm
- Location on shaft
- Acc
- Material
- VA
- Operating temperature max.
- 100.0 °C
- Operating temperature min.
- -20.0 °C
- Outside diameter locking collar
- 37.0 mm
- PFAS
- nein
- Protecting cap
- KASK04-VA-G-NAT
- Sealing type
- LIP
- Thickness of flange
- 22.7 mm
- Total height unit
- 48.3 mm
- Width of flats
- 3.0 mm
