Description
Flanged housing unit RALT..-XL
INA
RALT20-XL-FA125.8
Flanged housing unit
⌀20 × 42 mm
od EUR 17.18z VAT
netto EUR 13.97 · cena detaliczna
RALT20-XL-FA125.8—
EUR 17.18
Cheaper in larger quantities
| from 250 pcs | EUR 13.27 | −5% |
Last few (10)dispatch within 24 h
Dispatched within 24 h from our own warehouse
Symbol (SKU)RALT20-XL-FA125.8#N1-K1
EAN4054369297232
Wymiary⌀20 × 42 mm
Masa170 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
48 parametersIdentification
- Manufacturer
- INA
- Type
- Flanged housing unit
- Part number (SKU)
- RALT20-XL-FA125.8#N1-K1
- EAN
- 4054369297232
Dimensions
- Bore d
- 20 mm
- Outside diameter D
- 42 mm
- Mass
- 170 g
Full manufacturer specification41 parameters · expand
- Basic dynamic load rating
- 10000.0 N
- Basic static load rating
- 5000.0 N
- Bearing designation
- RALE20-XL-NPP-B
- Bearing in kit
- RALE20-XL-NPP-B
- Bearing sealed
- Yes
- Bearing sort
- RIBB
- Bearing split
- No

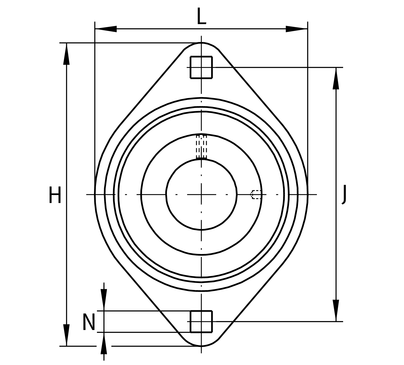

- Distance between mounting bolt centerlines (length)
- 63.5 mm
- Distance fixing bore
- 63.5 mm
- Flange width
- 58.7 mm
- Height bearing seat
- 40.5 mm
- Height flange
- 81.0 mm
- Height housing
- 7.0 mm
- Housing
- FLAN42-LST
- Housing height
- 81.0 mm
- Housing in kit
- RALT20-XL-FA125.8
- Housing length
- 58.7 mm
- Housing material
- SB
- Housing opening
- durchgehend
- Housing qty bolts
- 2
- Housing shape
- Oval
- Housing sort
- Flanged
- Housing split
- Nein
- Housing width
- 20.46 mm
- Inner diameter bearing
- 20.0 mm
- Load carrying capacity (housing)
- 2700.0 N
- Location on shaft
- Acc
- Manufacturing instruction
- FA125.8
- Marketing category
- XL
- Material
- Steel sheet
- Number of housings
- 2.0
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -20.0 °C
- Outer diameter bearing
- 42.0 mm
- PFAS
- nein
- REACH
- REACH compliant with declarable lead proportion
- RoHS
- RoHS compliant with declarable substances
- Sealing type
- LIP
- Shoulder diameter housing
- 48.0 mm
- Thickness of flange
- 2.0 mm
- Total height unit
- 20.46 mm
