INA

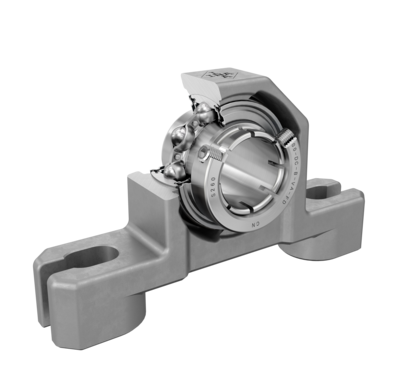

RASEHOC35-VA-FD
Plummer block housing unit
od EUR 880.99z VAT
netto EUR 716.25 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
RASEHOC35-VA-FD—
EUR 880.99
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)RASEHOC35-VA-FD#N1
EAN4064328418158
Masa1.59 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
44 parametersIdentification
- Manufacturer
- INA
- Type
- Plummer block housing unit
- Part number (SKU)
- RASEHOC35-VA-FD#N1
- EAN
- 4064328418158
Dimensions
- Bore d
- 35 mm
- Mass
- 1.59 kg
Load ratings and operation
- Dynamic load rating C
- 21900 N
- Static load rating C₀
- 12500 N
Full manufacturer specification36 parameters · expand
- Basic dynamic load rating
- 21900.0 N
- Basic static load rating
- 12500.0 N
- Bearing designation
- OCE35-DC-B-VA-FD
- Bearing sealed
- Yes
- Bearing sort
- RIBB
- Bearing split
- No
- Distance between mounting bolt centerlines (length)
- 127.0 mm
- Distance fixing bore
- 127.0 mm
- Distance housing base
- 12.7 mm
- Distance of raceway to locking collar
- 27.0 mm
- Distance shaft axis
- 60.3 mm
- Fatigue load limit, radial
- 1000.0 N
- Height
- 103.3 mm
- Height (base)
- 26.7 mm
- Height bearing seat
- 60.3 mm
- Housing
- GEH.ASE07H-VA-NAT
- Housing height
- 103.3 mm
- Housing length
- 167.0 mm
- Housing opening
- durchgehend
- Housing qty bolts
- 2
- Housing shape
- Fuss_lang
- Housing sort
- Plummer
- Housing split
- Nein
- Housing width
- 46.0 mm
- Inner diameter bearing
- 35.0 mm
- Length (slot)
- 21.0 mm
- Length total
- 167.0 mm
- Location on shaft
- Acc
- Material
- VA
- Operating temperature max.
- 100.0 °C
- Operating temperature min.
- -20.0 °C
- Protecting cap
- KASK07-VA-G-NAT
- Sealing type
- LIP
- Total width unit
- 46.0 mm
- Width (base)
- 38.0 mm
- Width (slot)
- 17.0 mm
