Technical data
23 parametersIdentification
- Manufacturer
- INA
- Type
- Aligning needle roller bearing
- Part number (SKU)
- PNA15/32-XL#N1
- EAN
- 4047643203418

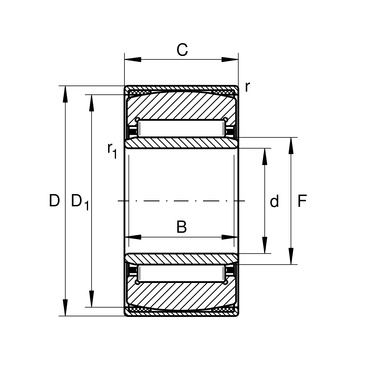

Dimensions
- Bore d
- 15 mm
- Outside diameter D
- 32 mm
- Mass
- 61.288 g
Load ratings and operation
- Dynamic load rating C
- 14100 N
- Static load rating C₀
- 16200 N
- Limiting speed
- 22100 1/min
Full manufacturer specification13 parameters · expand
- Category
- XL
- Fatigue load limit, radial
- 3050.0 N
- Flange diameter of outer cup
- 27.0 mm
- Inner ring raceway diameter
- 18.0 mm
- Inner ring width
- 16.0 mm
- Max. operating temperature
- 100.0 °C
- Min. operating temperature
- -20.0 °C

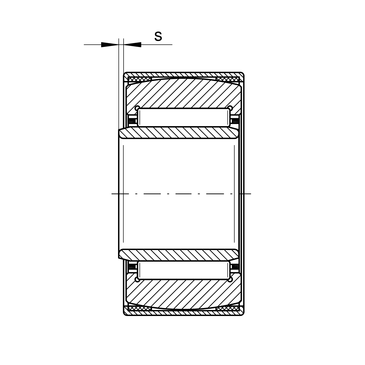

- Minimum axial displacement
- 0.5 mm
- Minimum chamfer
- 0.8 mm
- Outer ring width
- 16.0 mm
- PFAS
- no
- REACH
- REACH compliant
- RoHS
- RoHS compliant
Classification
- Manufacturer category
- Rolling and Plain Bearings › Roller Bearings › Needle Roller Bearings › Aligning Needle Roller Bearings
- eCl@ss class
- 23-05-09-07
- UNSPSC
- 31171512
Description

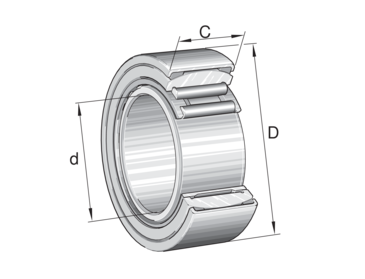

This needle roller bearing carries an inner ring and is designed with a spherical outer ring surface, allowing self-alignment within its housing. Bore diameter is 15.0 mm, outside diameter 32.0 mm, net mass 61.288 g, and the limiting speed reaches 22100.0 1/min. The spherical outer surface compensates for angular misalignment between shaft and housing, reducing edge loading on the rolling elements under such conditions. The integrated inner ring allows direct mounting on a shaft without a separate inner raceway component, simplifying installation while maintaining full needle roller complement contact for radial load support.
The same bearing from other manufacturers (2 designations)
Same size and design — suffix notation differs between brands.
INA
PNA15/32-XL
original — this page
equivalent designation
NTN
PNA15/32
SKF
PNA15/32
This is a dimensional and design equivalent, not the same product. If in doubt, ask us before ordering.
PNA15/32-XL
Common designation: PNA15/32
Aligning needle roller bearing
⌀15 × 32 mm
od EUR 24.89net
+ VAT 23% = EUR 30.61 gross
Cheaper in larger quantities
| from 5 pcs | EUR 24.39 | −2% |
| from 10 pcs | EUR 24.14 | −3% |
| from 25 pcs | EUR 23.64 | −5% |
| from 50 pcs | EUR 23.14 | −7% |
Dispatched within 24 h from our own warehouse
Shipping within the EU: DHL, GLS, from EUR 13.18 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)RoHS / REACH compliance declaration (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
