INA
PCST30-208-AH23
Flanged housing unit
od EUR 89.96z VAT
netto EUR 73.14 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
PCST30-208-AH23—
EUR 89.96
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)PCST30-208-AH23#N1
EAN4012802816853
Masa980 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
44 parametersIdentification
- Manufacturer
- INA
- Type
- Flanged housing unit
- Part number (SKU)
- PCST30-208-AH23#N1
- EAN
- 4012802816853

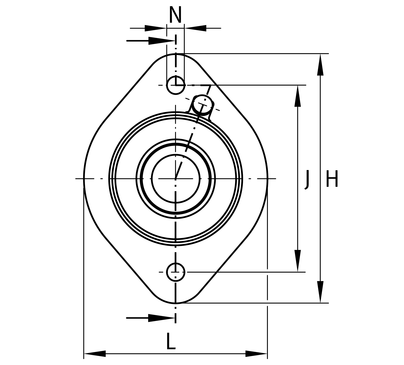

Dimensions
- Bore d
- 30 mm
- Mass
- 980 g
Load ratings and operation
- Dynamic load rating C
- 34500 N
- Static load rating C₀
- 19800 N
Full manufacturer specification36 parameters · expand
- Basic dynamic load rating
- 34500.0 N
- Basic static load rating
- 19800.0 N
- Bearing designation
- GRAE30-208-NPP-B-AH01-OSE-L460
- Bearing sealed
- Yes
- Bearing sort
- RIBB
- Bearing split
- No
- Connection thread for lubrication
- Rp1/8
- Distance between mounting bolt centerlines (length)
- 117.0 mm
- Distance fixing bore
- 117.0 mm
- Distance raceway
- 13.0 mm
- Fixing bore
- 11.0 mm
- Flange width
- 115.0 mm
- Height flange
- 156.0 mm
- Height housing
- 28.0 mm
- Housing
- FLAN80-CLST-AH23
- Housing (Part 2)
- FLAN80-CST-AH08
- Housing height
- 156.0 mm
- Housing length
- 115.0 mm
- Housing opening
- durchgehend
- Housing qty bolts
- 2
- Housing shape
- Oval
- Housing sort
- Flanged
- Housing split
- Nein
- Housing width
- 44.05 mm
- Inner diameter bearing
- 30.0 mm
- Load carrying capacity (housing)
- 6000.0 N
- Location on shaft
- Acc
- Material
- Steel sheet
- Number of screwing holes
- 2.0
- PFAS
- nein
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Sealing type
- LIP
- Thickness
- 31.05 mm
- Thickness of flange
- 18.5 mm
- Total height unit
- 44.05 mm
