Description

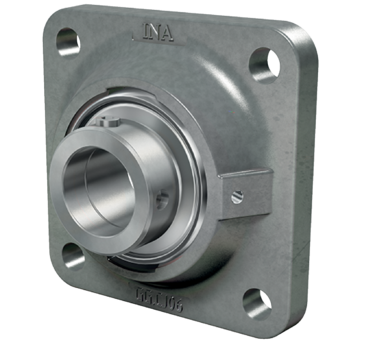

Housing units PCJ..-FA125, four-bolt flanged housing units, cast iron, eccentric locking collar, P seals, with anti-corrosion protection
INA
PCJ20-XL-N-FA125
Flanged housing unit
⌀20 × 47 mm
od EUR 39.18z VAT
netto EUR 31.85 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
PCJ20-XL-N-FA125—
EUR 39.18
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)PCJ20-XL-N-FA125#N1
EAN4012802810561
Wymiary⌀20 × 47 mm
Masa610 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
56 parametersIdentification
- Manufacturer
- INA
- Type
- Flanged housing unit
- Part number (SKU)
- PCJ20-XL-N-FA125#N1
- EAN
- 4012802810561
Dimensions
- Bore d
- 20 mm
- Outside diameter D
- 47 mm
- Mass
- 610 g
Load ratings and operation
- Dynamic load rating C
- 13600 N
- Static load rating C₀
- 6600 N
Full manufacturer specification47 parameters · expand
- Basic dynamic load rating
- 13600.0 N
- Basic static load rating
- 6600.0 N
- Bearing designation
- GRAE20-XL-NPP-B-FA125
- Bearing in kit
- GRAE20-XL-NPP-B-FA125
- Bearing sealed
- Yes
- Bearing sort
- RIBB
- Bearing split
- No
- Connection thread for lubrication
- M6
- Distance between mounting bolt centerlines (length)
- 89.8026 mm
- Distance fixing bore
- 63.5 mm
- Distance raceway
- 19.0 mm
- Fatigue load limit, radial
- 345.0 N
- Fixing bore
- 11.5 mm
- Flange width
- 86.0 mm
- Groove
- N
- Height bearing seat
- 43.0 mm
- Height housing
- 29.0 mm
- Housing
- CJ04
- Housing height
- 86.0 mm
- Housing in kit
- PCJ20-XL-N-FA125
- Housing length
- 86.0 mm
- Housing material
- GG
- Housing opening
- combi
- Housing qty bolts
- 4
- Housing shape
- Viereck
- Housing sort
- Flanged
- Housing split
- Nein
- Housing width
- 42.5 mm
- Inner diameter bearing
- 20.0 mm
- Location on shaft
- Acc
- Manufacturing instruction
- FA125
- Marketing category
- XL
- Material
- GG
- Number of housings
- 1.0
- Number of screwing holes
- 4.0
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -20.0 °C
- Outer diameter bearing
- 47.0 mm
- Outside diameter locking device
- 33.0 mm
- PFAS
- nein
- Protecting cap
- KASK04
- REACH
- REACH compliant with declarable lead proportion
- RoHS
- RoHS compliant with declarable substances
- Sealing type
- LIP
- Shoulder diameter housing
- 68.0 mm
- Thickness of flange
- 10.0 mm
- Total height unit
- 42.5 mm
