Description

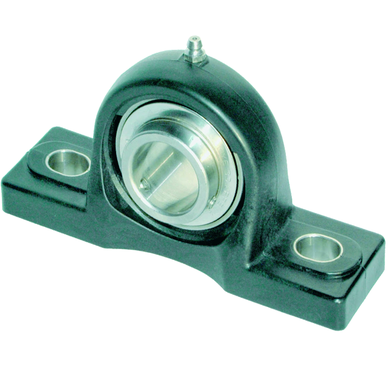

Plummer block housing unit PASE..-TV, RIBB plastic
INA
PASE30-TV-FA125.5
Plummer block housing unit
⌀30 × 62 mm
od EUR 61.93z VAT
netto EUR 50.35 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
PASE30-TV-FA125.5—
EUR 61.93
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)PASE30-TV-FA125.5#N1
EAN4012802832006
Wymiary⌀30 × 62 mm
Masa600 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
52 parametersIdentification
- Manufacturer
- INA
- Type
- Plummer block housing unit
- Part number (SKU)
- PASE30-TV-FA125.5#N1
- EAN
- 4012802832006
Dimensions
- Bore d
- 30 mm
- Outside diameter D
- 62 mm
- Mass
- 600 g
Full manufacturer specification45 parameters · expand
- Basic dynamic load rating
- 19500.0 N
- Basic static load rating
- 11300.0 N
- Bearing designation
- GRAE30-NPP-B-FA107/125.5
- Bearing in kit
- GRAE30-NPP-B-FA107/125.5
- Bearing sealed
- Yes
- Bearing sort
- RIBB
- Bearing split
- No
- Connection thread for lubrication
- 1/4 - 28 UNF
- Distance between mounting bolt centerlines (length)
- 119.0 mm
- Distance fixing bore
- 119.0 mm
- Distance raceway
- 26.8 mm
- Distance shaft axis
- 42.9 mm
- End cap
- KASK06-S-G
- Height
- 84.0 mm
- Height (base)
- 17.8 mm
- Height bearing seat
- 42.9 mm
- Housing
- GEH-ASE06-TV
- Housing height
- 83.0 mm
- Housing in kit
- PASE30-TV-FA125.5
- Housing length
- 162.0 mm
- Housing material
- PL
- Housing opening
- combi
- Housing qty bolts
- 2
- Housing shape
- Fuss_lang
- Housing sort
- Plummer
- Housing split
- Nein
- Housing width
- 46.0 mm
- Inner diameter bearing
- 30.0 mm
- Length
- 163.0 mm
- Length (slot)
- 18.0 mm
- Location on shaft
- Acc
- Locking collar total width
- 35.8 mm
- Manufacturing instruction
- FA125.5
- Material
- TV
- Open protecting cap
- KASK06-S-R-NBR
- Operating temperature max.
- 100.0 °C
- Operating temperature min.
- -35.0 °C
- Outer diameter bearing
- 62.0 mm
- PFAS
- nein
- REACH
- REACH compliant with declarable lead proportion
- RoHS
- RoHS compliant with declarable substances
- Sealing type
- LIP
- Special material
- TV
- Width (base)
- 46.0 mm
- Width (slot)
- 14.0 mm
