Technical data

24 parameters

Identification

Manufacturer
INA
Type
Linear plain bearing and housing unit
Part number (SKU)
PAGBAO30-PP-AS#N1
EAN
4012802061994

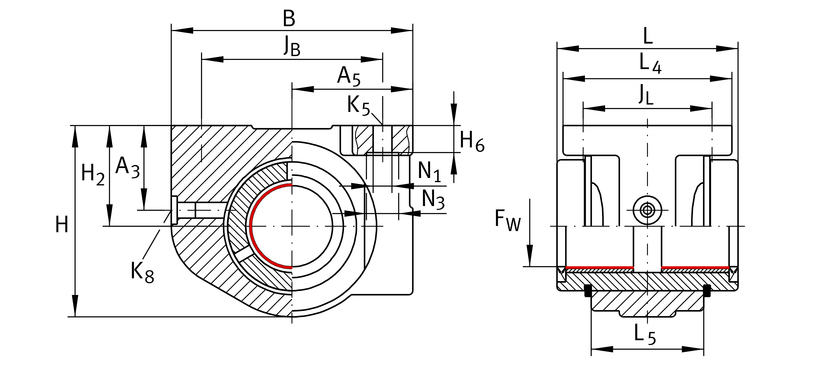

Dimensions

Width B
84 mm
Mass
430 g

Load ratings and operation

Sealing
PP
Full manufacturer specification17 parameters · expand

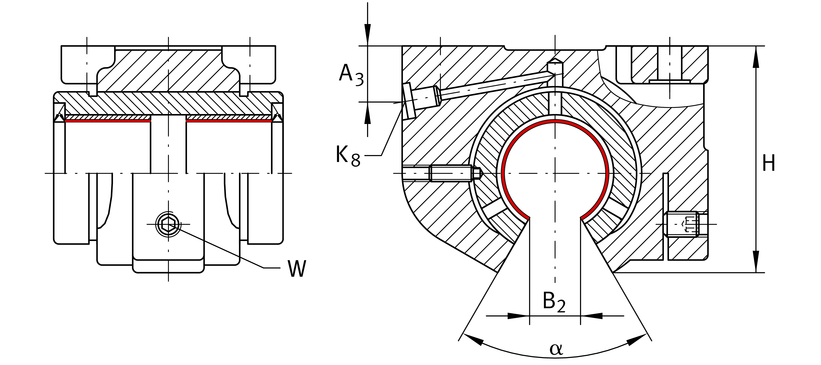

Angle
54.0 °
Center height
35.0 mm
Diameter of ball complement
30.0 mm
Height
63.5 mm
Length
68.0 mm
Lower tolerance
0.2 mm
Lubrication nipple
NIPA2
Max. tightening torque
4.0 Nm
Mounting Dimension
11.0 mm
PFAS
no
REACH
REACH compliant for SVHC free linear products (acc to PL responsibles)
Relubrication facility
AS
Seal
PP
Size code
30
Tolerance
h12
Upper tolerance
0.2 mm
Width across flats
3.0 mm

Classification

Manufacturer category
Linear Motion › Shaft Guidance Systems › Linear Plain Bearing Units › Standard range
eCl@ss class
23-30-01-06
UNSPSC
31171506

Description

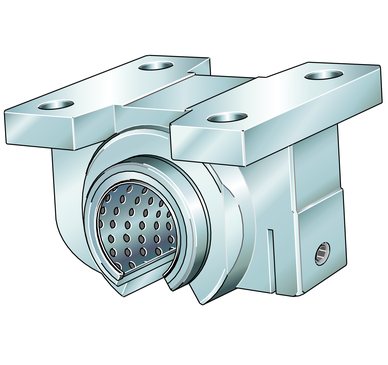

This unit combines a plain bearing with a housing in an open design, sealed on all sides, width 84.0 mm, height 63.5 mm, net mass 0.43 kg. The housing carries a relubrication facility, allowing grease to be replenished without dismantling the assembly. The full-side sealing keeps contaminants away from the sliding surface while retaining grease inside the housing, which supports steady linear motion along a shaft. The open design of the housing simplifies mounting and shaft insertion, and the relubrication facility allows maintenance intervals to be planned without removing the unit from its mounting position.

INA

PAGBAO30-PP-AS

Linear plain bearing and housing unit

od EUR 105.17net

+ VAT 23% = EUR 129.36 gross

Last few (1)dispatch within 24 h
PAGBAO30-PP-AS—
EUR 105.17

Cheaper in larger quantities

from 5 pcsEUR 103.07−2%
from 10 pcsEUR 102.02−3%
from 25 pcsEUR 99.91−5%
from 50 pcsEUR 97.81−7%

Dispatched within 24 h from our own warehouse

Shipping within the EU: DHL, GLS, from EUR 13.18 net. Transit time 3–5 business days after dispatch. Shipping and returns →

Symbol (SKU)PAGBAO30-PP-AS#N1
EAN4012802061994
Masa430 g

Buying for a company?

Open a business account →

Documentation

Datasheet (PDF)RoHS / REACH compliance declaration (PDF)

Opening a document for the first time can take up to a minute while the manufacturer prepares it.

Need fitting, lubrication or a vibration check?
