Technical data
35 parametersIdentification
- Manufacturer
- FAG
- Type
- Cylindrical roller bearing
- Part number (SKU)
- NU1072-M1A#N1
- EAN
- 4012801337571
- Cage
- M1A
- Tolerance class
- PN

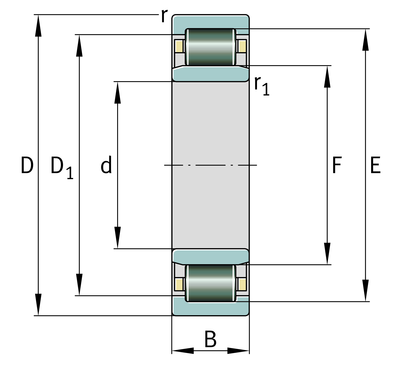

Dimensions
- Bore d
- 360 mm
- Outside diameter D
- 540 mm
- Width B
- 82 mm
- Mass
- 66.71 kg
- Radial clearance
- CN (Group N)
Load ratings and operation
- Dynamic load rating C
- 1150000 N
- Static load rating C₀
- 1910000 N
- Limiting speed
- 1940 1/min
Full manufacturer specification21 parameters · expand
- Axial displacement
- 8.9 mm
- Cage
- M1A
- Design
- Standard
- Fatigue load limit, radial
- 155000.0 N
- Inner ring raceway diameter
- 405.0 mm
- Max. operating temperature
- 150.0 °C
- Maximum housing shoulder diameter
- 523.0 mm
- Maximum recess radius
- 4.0 mm
- Maximum shaft shoulder diameter
- 400.0 mm
- Min. operating temperature
- -30.0 °C
- Minimum chamfer
- 5.0 mm
- Minimum outer ring rib diameter
- 478.1 mm
- Minimum shaft shoulder
- 410.0 mm
- Minimum shaft shoulder diameter
- 377.0 mm
- Number of rows
- 1
- Outer ring raceway diameter
- 495.0 mm
- PFAS
- no
- Radial internal clearance
- CN (group N)
- REACH
- REACH compliant with declarable lead proportion
- Reference speed
- 1110.0 1/min
- RoHS
- RoHS compliant with declarable substances
Classification
- Manufacturer category
- Rolling and Plain Bearings › Roller Bearings › Cylindrical Roller Bearings
- eCl@ss class
- 23-05-09-01
- UNSPSC
- 31171505
Description
Cylindrical roller bearing NU..-M1A, with cage, single row, non-locating bearing, 2 ribs on outer ring, 0 ribs on inner ring (smooth), type NU, Running accuracy in P6
The same bearing from other manufacturers (2 designations)
Same size and design — suffix notation differs between brands.
FAG
NU1072-M1A
original — this page
equivalent designation
SKF
NU1072MA
TIMKEN
NU1072MA
This is a dimensional and design equivalent, not the same product. If in doubt, ask us before ordering.
NU1072-M1A
Cylindrical roller bearing
⌀360 × 540 × 82 mm
od EUR 5,382.67net
+ VAT 23% = EUR 6,620.68 gross
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
Cheaper in larger quantities
| from 5 pcs | EUR 5,167.36 | −4% |
| from 10 pcs | EUR 5,113.54 | −5% |
| from 25 pcs | EUR 5,005.88 | −7% |
| from 50 pcs | EUR 4,898.23 | −9% |
Brought in to order — we confirm the date after checking with the manufacturer.
Shipping within the EU: DHL, GLS, from EUR 13.18 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)RoHS / REACH compliance declaration (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
