Technical data

12 parameters

Identification

Manufacturer
FAG
Type
Sealing ring
Part number (SKU)
NTC38#N1
EAN
4054364221683

Dimensions

Outside diameter D
282.5 mm
Width B
69 mm
Mass
7.20 kg
Full manufacturer specification5 parameters · expand
Overhang outside
36.0 mm
PFAS
no
REACH
REACH compliant with declarable lead proportion
RoHS
RoHS compliant with declarable substances
Shaft diameter
170.0 mm

Classification

Manufacturer category
Housings › Accessories › Seals
eCl@ss class
23-05-22-05
UNSPSC
31181502

Description

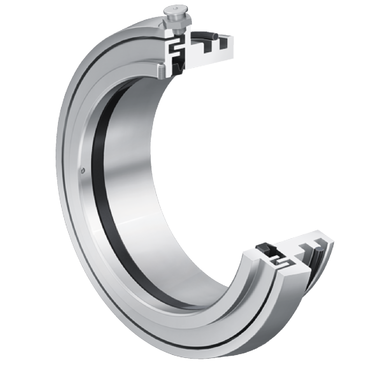

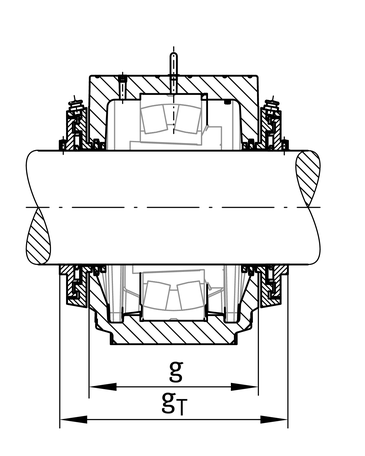

Provides combined sealing protection for the shaft-housing interface in an SNS-type bearing housing arrangement, using a taconite-type seal design with an outside diameter of 282.5 mm and a width of 69.0 mm. Net mass is 7.2 kg, reflecting the solid construction typical of this sealing ring category. The combined sealing arrangement offers protection against both solid contamination and moisture ingress, making it suitable where the shaft operates under exposure to dust, dirt, or water in the vicinity of the bearing housing. This sealing ring is matched dimensionally to the SNS-housing series and should be installed accordingly to maintain the intended sealing performance at the specified outside diameter and width.

FAG

NTC38

Sealing ring

od EUR 357.94net

+ VAT 23% = EUR 440.27 gross

To orderdate to be confirmed

This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.

NTC38—
EUR 357.94

Cheaper in larger quantities

from 5 pcsEUR 347.80−3%
from 10 pcsEUR 344.21−4%
from 25 pcsEUR 337.04−6%
from 50 pcsEUR 329.87−8%

Brought in to order — we confirm the date after checking with the manufacturer.

Shipping within the EU: DHL, GLS, from EUR 13.18 net. Transit time 3–5 business days after dispatch. Shipping and returns →

Symbol (SKU)NTC38#N1
EAN4054364221683
Masa7.20 kg

Buying for a company?

Open a business account →

Documentation

Datasheet (PDF)RoHS / REACH compliance declaration (PDF)

Opening a document for the first time can take up to a minute while the manufacturer prepares it.
