Description

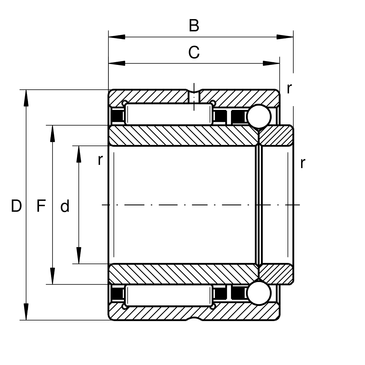

Needle roller/angular contact ball bearings NKIB, double direction axial component
INA
NKIB5907-XL
Needle roller/angular contact ball bearing
⌀35 × 55 × 30 mm
od EUR 71.87z VAT
netto EUR 58.43 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
NKIB5907-XL—
EUR 71.87
Cheaper in larger quantities
| from 250 pcs | EUR 52.58 | −10% |
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)NKIB5907-XL#N1>1
EAN4012802736168
Wymiary⌀35 × 55 × 30 mm
Masa243.76 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
25 parametersIdentification
- Manufacturer
- INA
- Type
- Needle roller/angular contact ball bearing
- Part number (SKU)
- NKIB5907-XL#N1>1
- EAN
- 4012802736168
Dimensions
- Bore d
- 35 mm
- Outside diameter D
- 55 mm
- Width B
- 30 mm
- Mass
- 243.76 g
Load ratings and operation
- Dynamic load rating C
- 35500 N
- Static load rating C₀
- 50000 N
- Limiting speed
- 10900 1/min
Full manufacturer specification14 parameters · expand
- Basic dynamic load rating, axial
- 7400.0 N
- Basic static load rating, axial
- 14900.0 N
- Fatigue load limit, axial
- 680.0 N
- Fatigue load limit, radial
- 9600.0 N
- Marketing category
- XL
- Minimum chamfer dimension
- 0.6 mm
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -30.0 °C
- PFAS
- nein
- Raceway diameter inner ring
- 42.0 mm
- REACH
- REACH conform
- Reference speed
- 9000.0 1/min
- RoHS
- RoHS compliant
- Width, outer ring
- 27.0 mm
