Technical data

27 parameters

Identification

Manufacturer
INA
Type
Needle roller bearing
Part number (SKU)
NKI6/16-TV-XL#N5
EAN
4012802734171
Cage
TV

Dimensions

Bore d
6 mm
Outside diameter D
16 mm
Width B
16 mm
Mass
16.9 g
Radial clearance
CN (Group N)

Load ratings and operation

Dynamic load rating C
6600 N
Static load rating C₀
7100 N
Limiting speed
31000 1/min
Full manufacturer specification14 parameters · expand

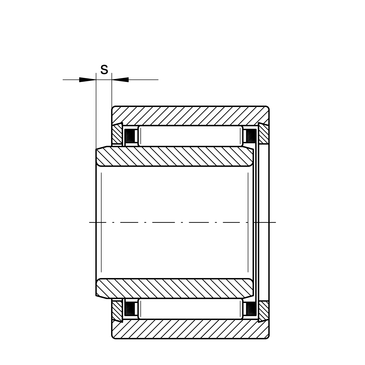

Axial displacement
2.0 mm
Cage
TV
Category
XL
Coating
without
Fatigue load limit, radial
1210.0 N
Inner ring raceway diameter
9.0 mm
Max. operating temperature
120.0 °C
Min. operating temperature
-30.0 °C
Minimum chamfer
0.3 mm
PFAS
no
Radial internal clearance
CN (group N)
REACH
REACH compliant
Reference speed
28000.0 1/min
RoHS
RoHS compliant

Classification

Manufacturer category
Rolling and Plain Bearings › Roller Bearings › Needle Roller Bearings › Machined Needle Roller Bearings
eCl@ss class
23-05-09-07
UNSPSC
31171512

Description

This needle roller bearing carries radial loads within a compact cross-section, using a solid inner ring combined with a full complement of needle rollers guided by a TV cage. Bore diameter is 6.0 mm, outside diameter 16.0 mm, width 16.0 mm, and net mass is 16.9 g. The bearing reaches a limiting speed of 31000 1/min and a reference speed of 28000 1/min, with radial internal clearance in the CN (Group N) range. The solid inner ring design allows the bearing to accommodate radial loads at reduced radial space, making it suitable where mounting height is limited but shaft diameter must be preserved. The TV cage guides the needle rollers to maintain even roller spacing at the stated speed range, while the CN internal clearance is intended for standard fit and temperature conditions. As an open bearing without integrated seals, lubrication and contamination protection must be provided externally, and correct shaft and housing fits should be selected according to the specified clearance group.

The same bearing from other manufacturers (2 designations)

Same size and design — suffix notation differs between brands.

Comparison and details →

INA

NKI6/16-TV-XL

original — this page

equivalent designation

SKF

NKI6/16TN

conditionally interchangeable

These items are conditionally interchangeable — check the design before ordering.

NTN

NK9/16 + IR6X9X16

This is a dimensional and design equivalent, not the same product. If in doubt, ask us before ordering.

INA

NKI6/16-TV-XL

Common designation: NKI6/16 TV

Needle roller bearing

⌀6 × 16 × 16 mm

od EUR 8.58net

+ VAT 23% = EUR 10.55 gross

Last few (9)dispatch within 24 h
NKI6/16-TV-XL—
EUR 8.58

Cheaper in larger quantities

from 5 pcsEUR 8.41−2%
from 10 pcsEUR 8.33−3%
from 25 pcsEUR 8.16−5%
from 50 pcsEUR 7.98−7%

Dispatched within 24 h from our own warehouse

Shipping within the EU: DHL, GLS, from EUR 13.16 net. Transit time 3–5 business days after dispatch. Shipping and returns →

Symbol (SKU)NKI6/16-TV-XL#N5
EAN4012802734171
Wymiary⌀6 × 16 × 16 mm
Opakowanie5 szt.
Masa16.9 g

Buying for a company?

Open a business account →

Documentation

Datasheet (PDF)RoHS / REACH compliance declaration (PDF)

Opening a document for the first time can take up to a minute while the manufacturer prepares it.
