Description
Needle roller bearings NK, light series
INA
NK10/12-TV-XL
Needle roller bearing
od EUR 6.81z VAT
netto EUR 5.54 · cena detaliczna
EUR 7.68−11%
NK10/12-TV-XL—
EUR 7.68
EUR 6.81Cheaper in larger quantities
| from 10 pcs | EUR 6.11 | −2% |
| from 50 pcs | EUR 5.99 | −4% |
| from 750 pcs | EUR 5.68 | −9% |
Last few (2)dispatch within 24 h
Dispatched within 24 h from our own warehouse
Symbol (SKU)NK10/12-TV-XL#N5
EAN4012802733365
Opakowanie5 szt.
Minimum order5 szt.
Masa10.3 g
Ten towar sprzedawany jest w opakowaniach po 5 szt.
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
27 parametersIdentification
- Manufacturer
- INA
- Type
- Needle roller bearing
- Part number (SKU)
- NK10/12-TV-XL#N5
- EAN
- 4012802733365
- Cage
- TV
- Tolerance class
- PN

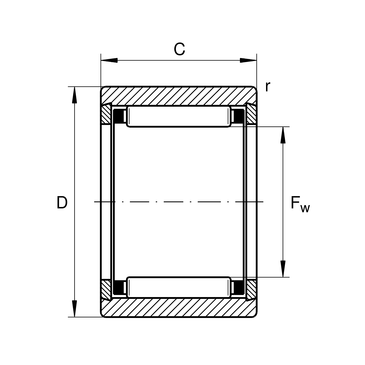

Dimensions
- Outside diameter D
- 17 mm
- Mass
- 10.3 g
Load ratings and operation
- Dynamic load rating C
- 5300 N
- Static load rating C₀
- 5500 N
- Limiting speed
- 29500 1/min
Full manufacturer specification16 parameters · expand
- Cage
- TV
- Cage feature
- Standard
- Fatigue load limit, radial
- 940.0 N
- Lubricant
- Without
- Marketing category
- XL
- Minimum chamfer dimension
- 0.3 mm
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -30.0 °C
- PFAS
- nein
- REACH
- REACH conform
- Reference speed
- 29000.0 1/min
- RoHS
- RoHS compliant
- Sealing ring
- G10X17X3
- Sealing ring 2
- SD10X17X3
- Under roller diameter
- 10.0 mm
- Width, outer ring
- 12.0 mm
