Technical data
24 parametersIdentification
- Manufacturer
- INA
- Type
- Needle roller bearing
- Part number (SKU)
- NA4900-RSR-XL#N1>1
- EAN
- 4012802701593

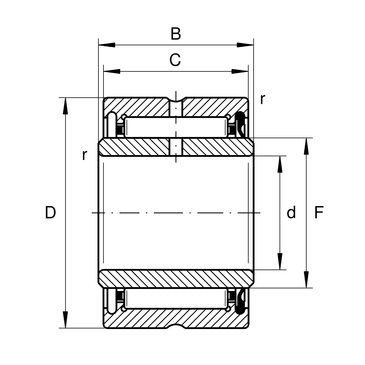

Dimensions
- Bore d
- 10 mm
- Outside diameter D
- 22 mm
- Mass
- 23.52 g
Load ratings and operation
- Dynamic load rating C
- 7700 N
- Static load rating C₀
- 6900 N
- Sealing
- RSR
Full manufacturer specification14 parameters · expand
- Category
- XL
- Coating
- without
- Fatigue load limit, radial
- 1390.0 N
- Inner ring raceway diameter
- 14.0 mm
- Limiting speed for grease lubrication
- 14800.0 1/min
- Max. operating temperature
- 100.0 °C
- Min. operating temperature
- -20.0 °C
- Minimum chamfer
- 0.3 mm
- Outer ring width
- 13.0 mm
- PFAS
- no
- REACH
- REACH compliant
- RoHS
- RoHS compliant
- Sealing
- RSR
- Width, inner ring
- 14.0 mm
Classification
- Manufacturer category
- Rolling and Plain Bearings › Roller Bearings › Needle Roller Bearings › Machined Needle Roller Bearings
- eCl@ss class
- 23-05-09-07
- UNSPSC
- 31171512
Description

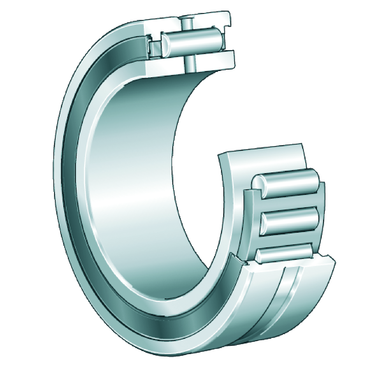

Needle roller bearings NA49..-RSR, dimension series 49, lip seal on one side
The same bearing from other manufacturers (1 designations)
Same size and design — suffix notation differs between brands.
INA
NA4900-RSR-XL
original — this page
equivalent designation
NTN
NA4900L
This is a dimensional and design equivalent, not the same product. If in doubt, ask us before ordering.
NA4900-RSR-XL
Common designation: NA4900 RS
Needle roller bearing
⌀10 × 22 mm
od EUR 20.28net
+ VAT 23% = EUR 24.94 gross
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
Cheaper in larger quantities
| from 5 pcs | EUR 19.88 | −2% |
| from 10 pcs | EUR 19.67 | −3% |
| from 25 pcs | EUR 19.27 | −5% |
| from 50 pcs | EUR 18.86 | −7% |
Brought in to order — we confirm the date after checking with the manufacturer.
Shipping within the EU: DHL, GLS, from EUR 13.16 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)RoHS / REACH compliance declaration (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
