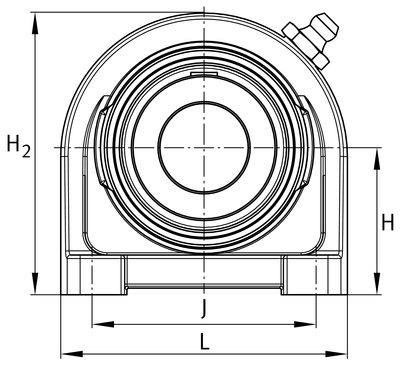

Technical drawing

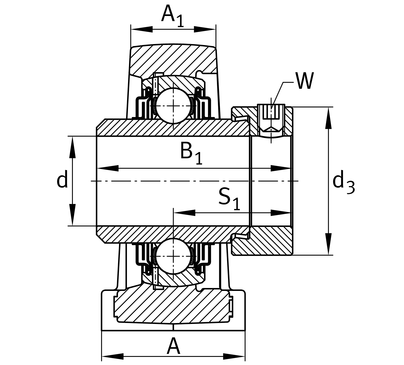

Rysunek techniczny 2

Description

Plummer block housing unit LSHE..-N, RIBB cast iron SHE

INA

LSHE25-N

Plummer block housing unit

od EUR 36.49z VAT

netto EUR 29.67 · cena detaliczna

EUR 48.65−25%

LSHE25-N—

EUR 48.65

EUR 36.49

Cheaper in larger quantities

from 10 pcsEUR 38.76−2%
from 50 pcsEUR 37.97−4%
from 250 pcsEUR 37.57−5%
Last few (4)dispatch within 24 h

Dispatched within 24 h from our own warehouse

Symbol (SKU)LSHE25-N#N1
EAN4012802798074
Masa610 g

Buying for a company?

A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.

Open a business account →

Technical data

40 parameters
Datasheet (PDF)Full manufacturer specification — drawing, dimensions, tolerances.

Identification

Manufacturer
INA
Type
Plummer block housing unit
Part number (SKU)
LSHE25-N#N1
EAN
4012802798074

Dimensions

Bore d
25 mm
Mass
610 g

Load ratings and operation

Dynamic load rating C
14900 N
Static load rating C₀
7800 N
Full manufacturer specification32 parameters · expand
Bearing designation
GE25-XL-KLL-B
Bearing sealed
Yes
Bearing sort
RIBB
Bearing split
No
Connection thread for lubrication
M6
Distance fixing bore
50.8 mm
Distance of raceway to locking collar
27.0 mm
Distance shaft axis
36.5 mm
Groove
N
Height
70.0 mm
Housing
GEHSHE05-GG-N
Housing in kit
LSHE25-N
Housing material
GG
Housing opening
durchgehend
Housing qty bolts
2
Housing shape
Fuss_kurz
Housing sort
Plummer
Housing split
Nein
Length total
70.0 mm
Location on shaft
Acc
Locking collar total width
44.5 mm
Material
GG
Operating temperature max.
180.0 °C
Operating temperature min.
-40.0 °C
PFAS
nein
Protecting cap
KASK05
REACH
REACH conform
RoHS
RoHS compliant
Sealing type
LIP
Thread fixing bore
M10
Width (base)
36.0 mm
Width (head)
21.0 mm
