Genuine FAG and INA bearingsRetail pricesOrders placed before 2 p.m. ship the same day
Technical data
17 parametersIdentification
- Manufacturer
- INA
- Type
- Yoke type track roller
- Part number (SKU)
- LFR2204-10-2RSR-NA#N1N
- EAN
- 4012802706949
Dimensions
- Mass
- 163 g
Load ratings and operation
- Sealing
- 2RSR
Full manufacturer specification11 parameters · expand
- Code
- NA
- Effective dynamic load rating as track roller (radial)
- 13700.0 N
- Effective static load rating as track roller (radial)
- 18600.0 N
- Inner ring
- IR20X25X20
- Limit of fatigue load
- 2550.0 N
- PFAS
- no
- REACH
- REACH compliant for SVHC free linear products (acc to PL responsibles)
- RoHS
- RoHS compliant
- Sealing
- 2RSR
- Size
- 2204
- Width, inner ring
- 20.0 mm
Classification
- Manufacturer category
- Linear Motion › Track Roller Guidance Systems › Track Rollers (Yoke Type)
- eCl@ss class
- 23-30-90-90
- UNSPSC
- 31162701
Description

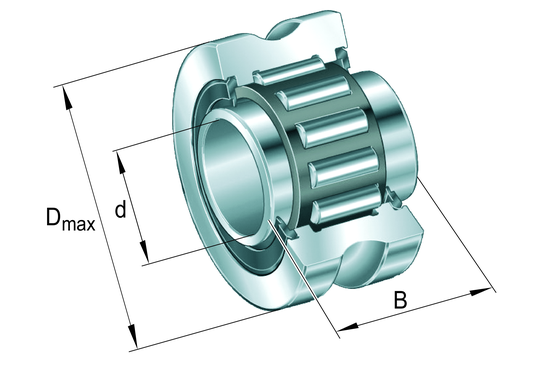

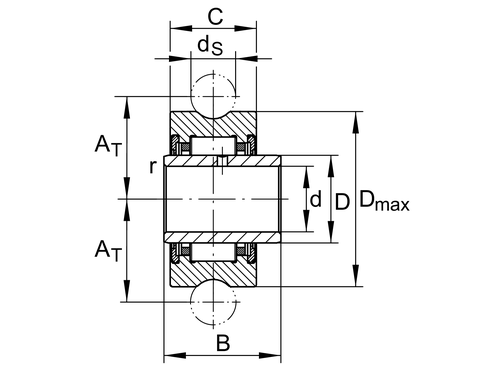

Yoke type track roller
INA
LFR2204-10-2RSR-NA
Common designation: LFR2204 10 2RS NA
Yoke type track roller
od EUR 39.84net
+ VAT 23% = EUR 49.00 gross
Last few (2)dispatch within 24 h
LFR2204-10-2RSR-NA—
EUR 39.84
Cheaper in larger quantities
| from 5 pcs | EUR 39.05 | −2% |
| from 10 pcs | EUR 38.65 | −3% |
| from 25 pcs | EUR 37.85 | −5% |
| from 50 pcs | EUR 37.06 | −7% |
Dispatched within 24 h from our own warehouse
Shipping within the EU: DHL, GLS, from EUR 13.18 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Symbol (SKU)LFR2204-10-2RSR-NA#N1N
EAN4012802706949
Masa163 g
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)RoHS / REACH compliance declaration (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
