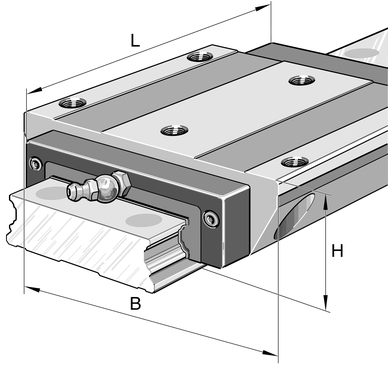

Technical data
33 parametersIdentification
- Manufacturer
- INA
- Type
- Recirculating ball bearing carriage
- Part number (SKU)
- KWVE15-W-V2-G3#N1
- EAN
- 4054362966814

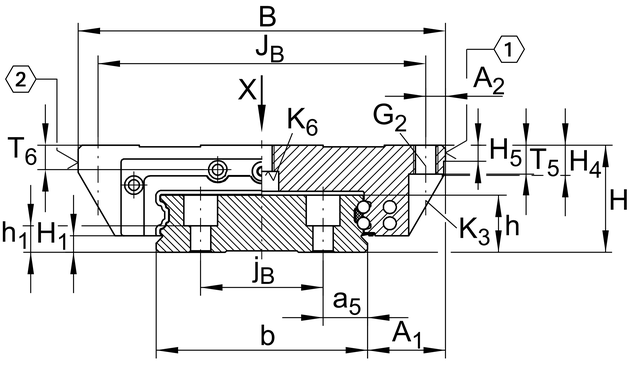

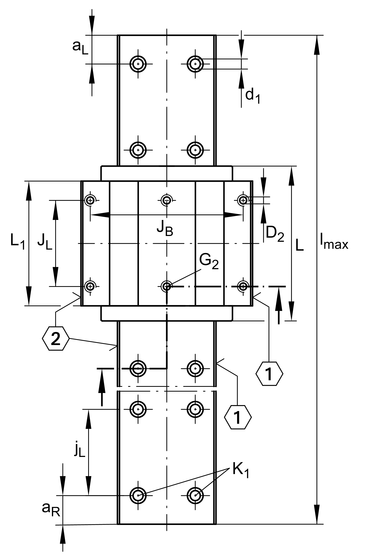

Dimensions
- Mass
- 260 g
Full manufacturer specification28 parameters · expand
- Accuracy class
- G3
- Carriage design
- W
- Carriage width
- 68.0 mm
- Distance from carriage locating edge to guideway locating edge
- 15.5 mm
- Distance from locating edge to hole
- 4.0 mm
- Dynamic load rating
- 7200.0 N
- Fixing screws above (DIN ISO 4762-12.9)
- M5
- Fixing screws below (DIN 7984-8.8)
- M4
- Fixing screws below (DIN ISO 4762-12.9)
- M4
- Free space, system dimension
- 2.1 mm

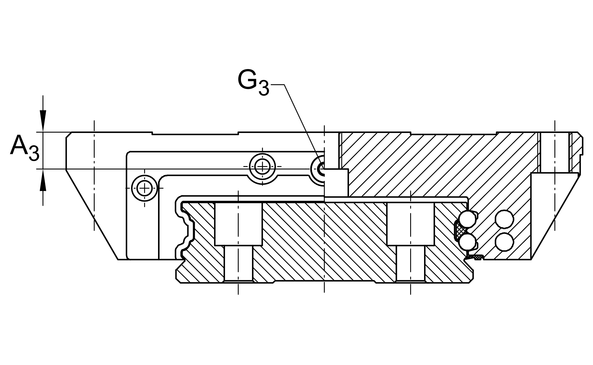

- Lubrication connector
- M3
- Lubrication connector position
- 3.6 mm
- Material name
- KWVE
- Maximum screw depth for lubrication connectors
- 4.0 mm
- Maximum tightening torque
- 5.8 Nm
- Overall carriage length
- 55.6 mm
- PFAS
- no
- Preload class
- V2
- Rail width
- 37.0 mm
- REACH
- REACH compliant for SVHC free linear products (acc to PL responsibles)
- Size code
- 15

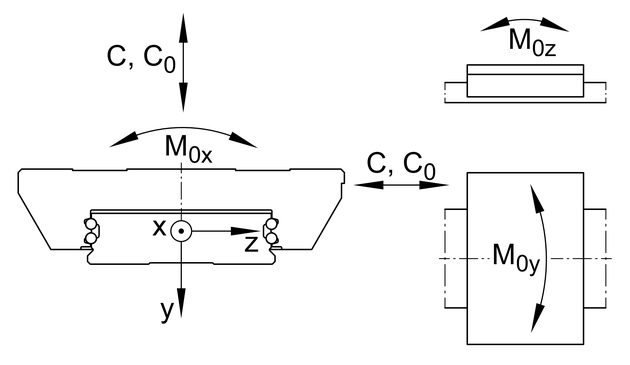

- Static load rating
- 14500.0 N
- Static moment rating about X axis
- 332.0 Nm
- Static moment rating about Y axis
- 100.0 Nm
- Static moment rating about Z axis
- 100.0 Nm
- System height
- 21.0 mm
- Thread depth
- 7.0 mm
- Version
- Version
Classification
- Manufacturer category
- Linear Motion › Monorail Guidance Systems › Four-row Linear Recirculating Ball Bearing (O-arrangement) › Carriages
- eCl@ss class
- 23-30-04-90
- UNSPSC
- 31171506
Description
This carriage guides linear motion along a rail through recirculating ball bearings, running in a wide design (W) that gives a broader support base compared to the standard version. The unit carries a net mass of 0.26 kg and is manufactured to accuracy class G3. The wide carriage geometry increases the effective distance between the ball tracks, which improves resistance to tilting moments and supports stable guidance under load. Accuracy class G3 covers general positioning requirements, making the carriage suitable for use where moderate running accuracy is sufficient rather than high-precision positioning. Mounting and sealing details are not covered by the provided data.
KWVE15-W-V2-G3
Recirculating ball bearing carriage
od EUR 63.79net
+ VAT 23% = EUR 78.46 gross
Cheaper in larger quantities
| from 5 pcs | EUR 62.51 | −2% |
| from 10 pcs | EUR 61.88 | −3% |
| from 25 pcs | EUR 60.60 | −5% |
| from 50 pcs | EUR 59.32 | −7% |
Dispatched within 24 h from our own warehouse
Shipping within the EU: DHL, GLS, from EUR 13.18 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)RoHS / REACH compliance declaration (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
