Technical data
34 parametersIdentification
- Manufacturer
- INA
- Type

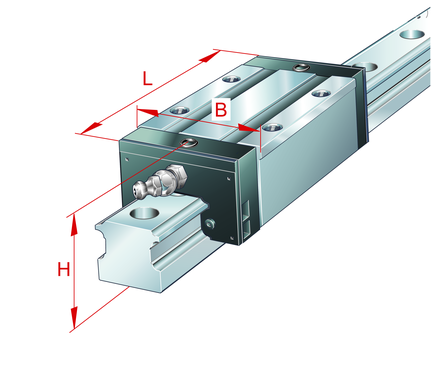

- Recirculating ball bearing carriage
- Part number (SKU)
- KWSE20-H-V2-G3#N1
- EAN
- 4054362939597
Dimensions
- Mass
- 390 g
Full manufacturer specification29 parameters · expand
- Accuracy class
- G3
- Carriage design
- H
- Carriage width
- 44.0 mm
- Category
- XL

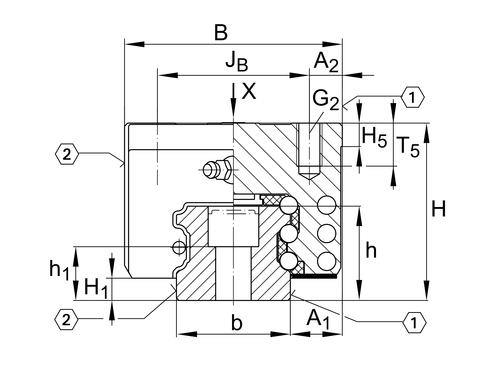

- Distance from carriage locating edge to guideway locating edge
- 12.0 mm
- Distance from locating edge to hole
- 6.0 mm

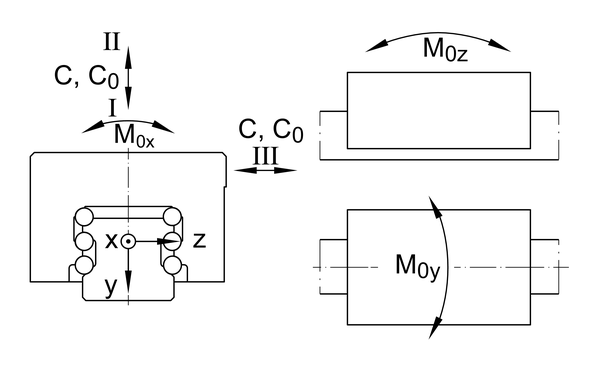

- Dynamic load rating, load direction I: compressive load
- 25500.0 N
- Dynamic load rating, load direction II: tensile load
- 21300.0 N
- Dynamic load rating; basic dynamic load rating, Load direction III: lateral load
- 21000.0 N
- Fixing screws below (DIN ISO 4762-12.9)
- M5
- Free space, system dimension
- 4.6 mm

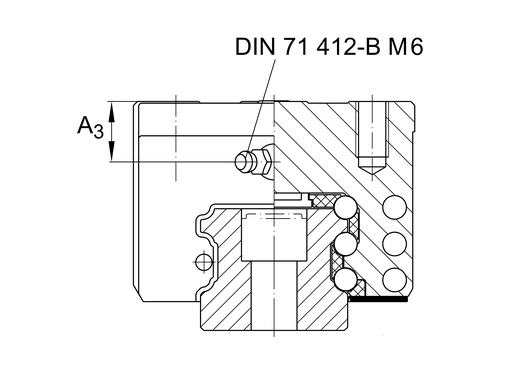

- Lubrication connector position
- 11.95 mm
- Material name
- KWSE
- Max. diameter of lubrication hole in adjacent construction
- 3.0 mm
- Maximum screw depth for lubrication connectors
- 7.0 mm
- Maximum tightening torque
- 10.0 Nm
- Moment
- 305.0 Nm

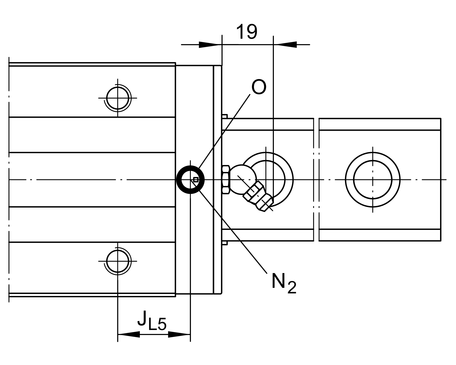

- O-Ring DIN 3771
- 3x1,5

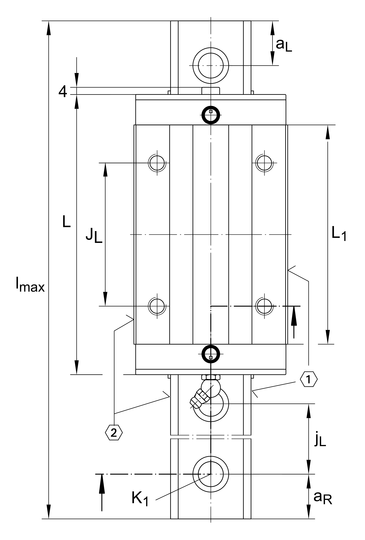

- Overall carriage length
- 71.4 mm
- PFAS
- no
- Preload class
- V2
- Rail width
- 20.0 mm
- REACH
- REACH compliant for SVHC free linear products (acc to PL responsibles)
- Size code
- 20
- Static load rating, load direction I: compressive load
- 61000.0 N
- Static load rating, load direction II: tensile load
- 35300.0 N
- Static load rating, Load direction III: lateral load
- 35000.0 N
- System height
- 30.0 mm
- Thread depth
- 6.0 mm
Classification
- Manufacturer category
- Linear Motion › Monorail Guidance Systems › Six-row Linear Recirculating Ball Bearing And Guideway Assemblies › Carriages
- eCl@ss class
- 23-30-04-90
- UNSPSC
- 31171506
Description
This carriage guides linear motion along a six-row recirculating ball bearing and guideway assembly, using a high, narrow design that keeps the mounting footprint compact while supporting load in multiple directions through the six raceway rows. Net mass of the carriage is 0.39 kg, and it is manufactured to accuracy class G3, which defines the tolerances on the running surfaces and mounting dimensions. The six-row ball arrangement distributes load across the raceways, giving the carriage stable guidance under combined loading directions typical of a recirculating ball guideway. Accuracy class G3 sets the dimensional and running tolerances that must be respected during installation to preserve the intended stiffness and running behavior of the assembly. The narrow, high profile suits applications where the mounting width is constrained but a taller carriage body is acceptable.
For mounting this bearing
Accessories matching this item. All from our catalogue.
KWSE20-H-V2-G3
Recirculating ball bearing carriage
od EUR 81.53net
+ VAT 23% = EUR 100.28 gross
Cheaper in larger quantities
| from 5 pcs | EUR 79.90 | −2% |
| from 10 pcs | EUR 79.09 | −3% |
| from 25 pcs | EUR 77.46 | −5% |
| from 50 pcs | EUR 75.83 | −7% |
Dispatched within 24 h from our own warehouse
Shipping within the EU: DHL, GLS, from EUR 13.18 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)RoHS / REACH compliance declaration (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
