Technical data
26 parametersIdentification
- Manufacturer
- INA
- Type
- Linear Ball Bearing and Housing Unit
- Part number (SKU)
- KTFS16-PP-AS#N1
- EAN
- 4012802051513

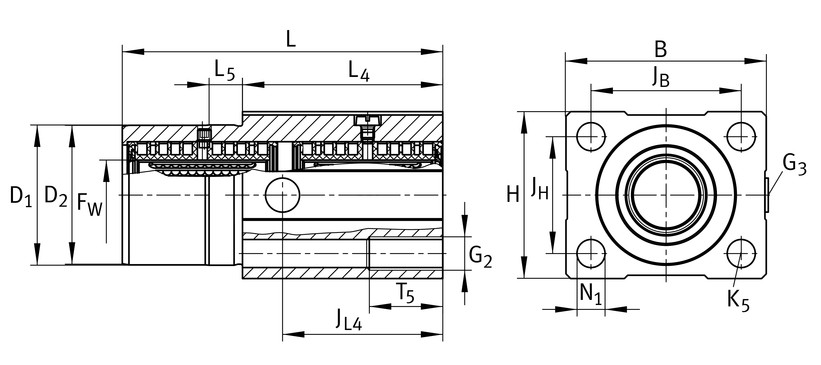

Dimensions
- Width B
- 50 mm
- Mass
- 255 g
Load ratings and operation
- Sealing
- PP
Full manufacturer specification19 parameters · expand
- Ball rows
- 8.0
- Diameter
- 35.0 mm
- Diameter of ball complement
- 16.0 mm
- Distance
- 39.0 mm
- Height
- 40.0 mm
- Length
- 78.0 mm
- Load capacity dyn. C
- 1790.0 N
- Load capacity stat. C0
- 1900.0 N
- Lower tolerance
- 0.15 mm
- PFAS
- no
- REACH
- REACH compliant with declarable lead proportion
- Relubrication facility
- AS
- RoHS
- RoHS compliant with declarable substances
- Seal
- PP
- Size code
- 16
- Thread depth
- 18.0 mm
- Thread size
- M8x1
- Tolerance
- g7
- Upper tolerance
- 0.15 mm
Classification
- Manufacturer category
- Linear Motion › Shaft Guidance Systems › Linear Ball Bearing Units & Housings › Heavy duty range - self-aligning
- eCl@ss class
- 23-30-03-06
- UNSPSC
- 31171506
Description

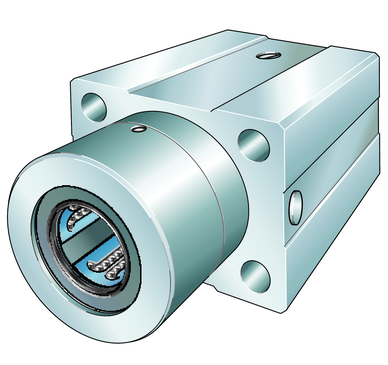

Linear ball bearing and housing unit; with self-aligning linear ball bearing, sealed, greased, with relubrication facility
The same bearing from other manufacturers (1 designations)
Same size and design — suffix notation differs between brands.
INA
KTFS16-PP-AS
original — this page
equivalent designation
REXROTH-BOSCH
1083-616-20
This is a dimensional and design equivalent, not the same product. If in doubt, ask us before ordering.
KTFS16-PP-AS
Linear Ball Bearing and Housing Unit
od EUR 130.11net
+ VAT 23% = EUR 160.04 gross
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
Cheaper in larger quantities
| from 5 pcs | EUR 127.51 | −2% |
| from 10 pcs | EUR 126.21 | −3% |
| from 25 pcs | EUR 123.61 | −5% |
| from 50 pcs | EUR 121.00 | −7% |
Brought in to order — we confirm the date after checking with the manufacturer.
Shipping within the EU: DHL, GLS, from EUR 13.16 net. Transit time 3–5 business days after dispatch. Shipping and returns →
Buying for a company?
Open a business account →Documentation
Datasheet (PDF)RoHS / REACH compliance declaration (PDF)Opening a document for the first time can take up to a minute while the manufacturer prepares it.
