Description

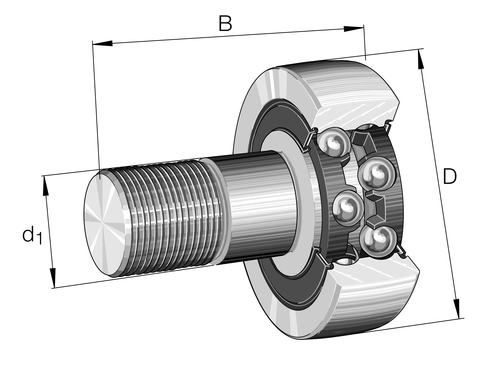

Stud type track rollers KR52..-2RS, double row self-retaining angular contact ball bearings with particularly thick-walled outer ring, ball and cage assembly, without eccentric collar and with a solid, long roller stud with external thread, axial guidance of outer ring is provided by the balls, lip seal on both sides, with axial sealing action, assembling aid hexagonal socket only on the flange side end face, no relubrication facility
INA
KR5201-2RS
Stud type track roller
od EUR 50.73z VAT
netto EUR 41.24 · cena detaliczna
EUR 59.63−15%
KR5201-2RS—
EUR 59.63
EUR 50.73Cheaper in larger quantities
| from 10 pcs | EUR 47.51 | −2% |
| from 50 pcs | EUR 46.54 | −4% |
| from 150 pcs | EUR 44.60 | −8% |
In stock (86 pcs)dispatch within 24 h
Dispatched within 24 h from our own warehouse
Symbol (SKU)KR5201-2RS#N1
EAN4012802786842
Masa140 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
31 parametersIdentification
- Manufacturer
- INA
- Type
- Stud type track roller
- Part number (SKU)
- KR5201-2RS#N1
- EAN
- 4012802786842

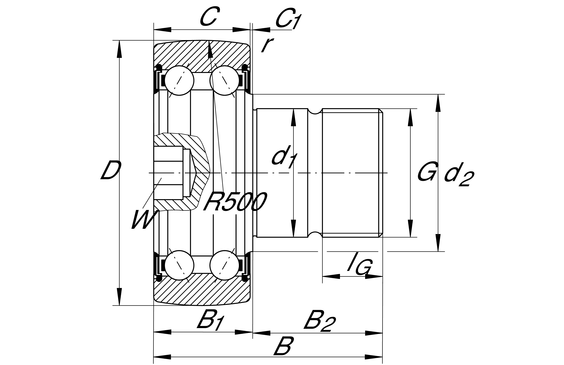

Dimensions
- Outside diameter D
- 35 mm
- Width B
- 49.2 mm
- Mass
- 140 g
Load ratings and operation
- Dynamic load rating C
- 8600 N
- Static load rating C₀
- 5400 N
- Sealing
- 2RS
Full manufacturer specification21 parameters · expand
- Assembling aid head
- I6
- Bolt/stud length effectively
- 32.5 mm
- Fatigue load limit, radial
- 265.0 N
- Fit diameter of roller stud / stud
- 12.0 mm
- Maximum witdh of thrust washer
- 17.0 mm
- Minimum chamfer dimension
- 0.6 mm
- Outer ring profile
- R500
- PFAS
- nein
- Protrusion outer ring to thrust washer
- 0.8 mm
- Radius of outer ring outside profile
- 500.0 mm
- REACH
- REACH conform
- Relubrication
- Without
- RoHS
- RoHS compliant
- Sealing
- 2RS
- Speed on permanent grease lubrication
- 7500.0 1/min
- Stop diameter of thrust washer
- 17.1 mm
- Thread
- M12X1,5
- Thread length
- 17.0 mm
- Tightening torque nut
- 45.0 Nm
- Width of flats
- 6.0 mm
- Width, outer ring
- 15.9 mm
